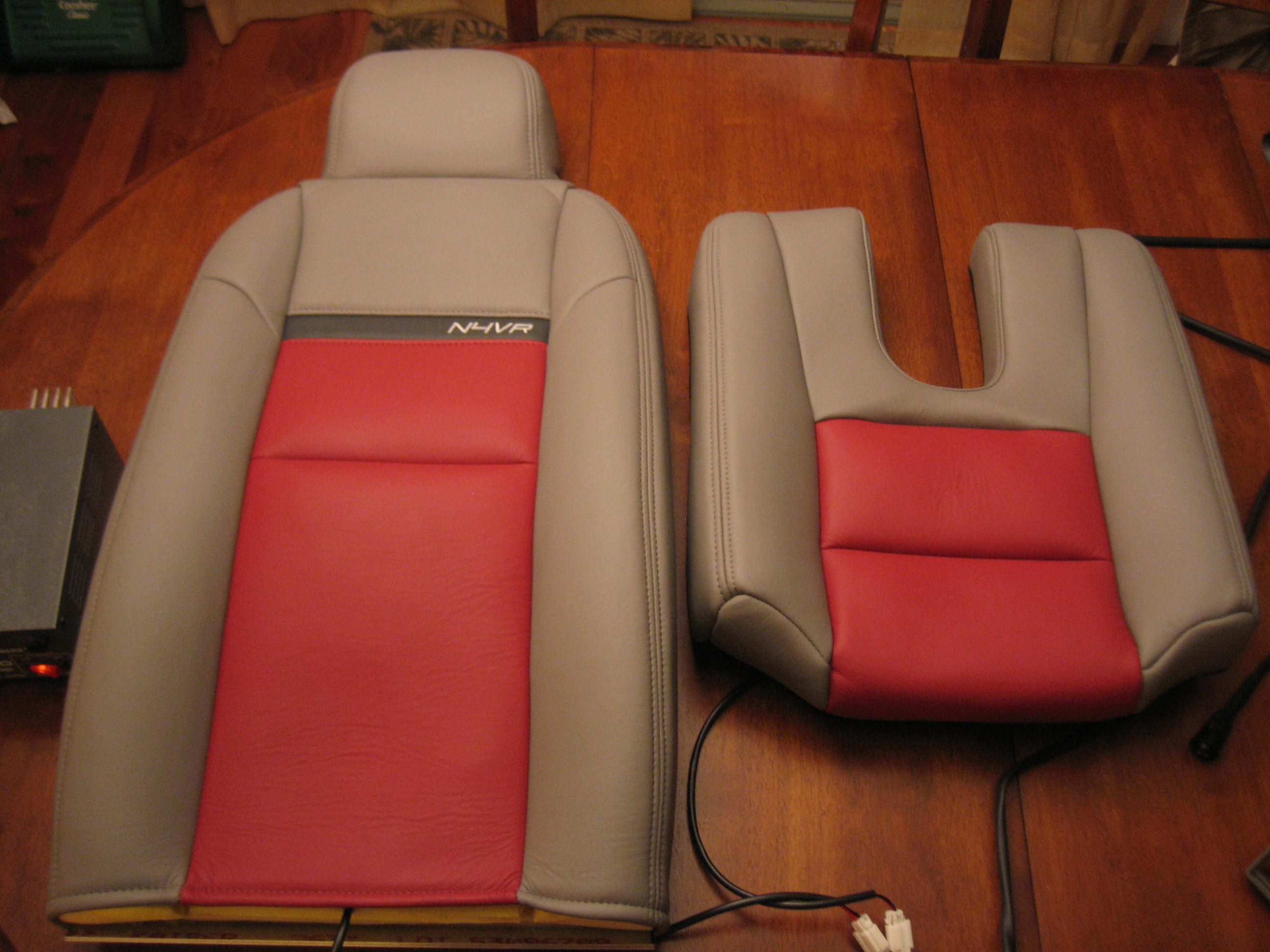

My Classic Aero Designs interior showed up today. Here is one of the seat backs and bottoms. My tail number (N4VR) is embroidered in the horizontal stripe. The wires coming out of each piece are for the seat heaters.

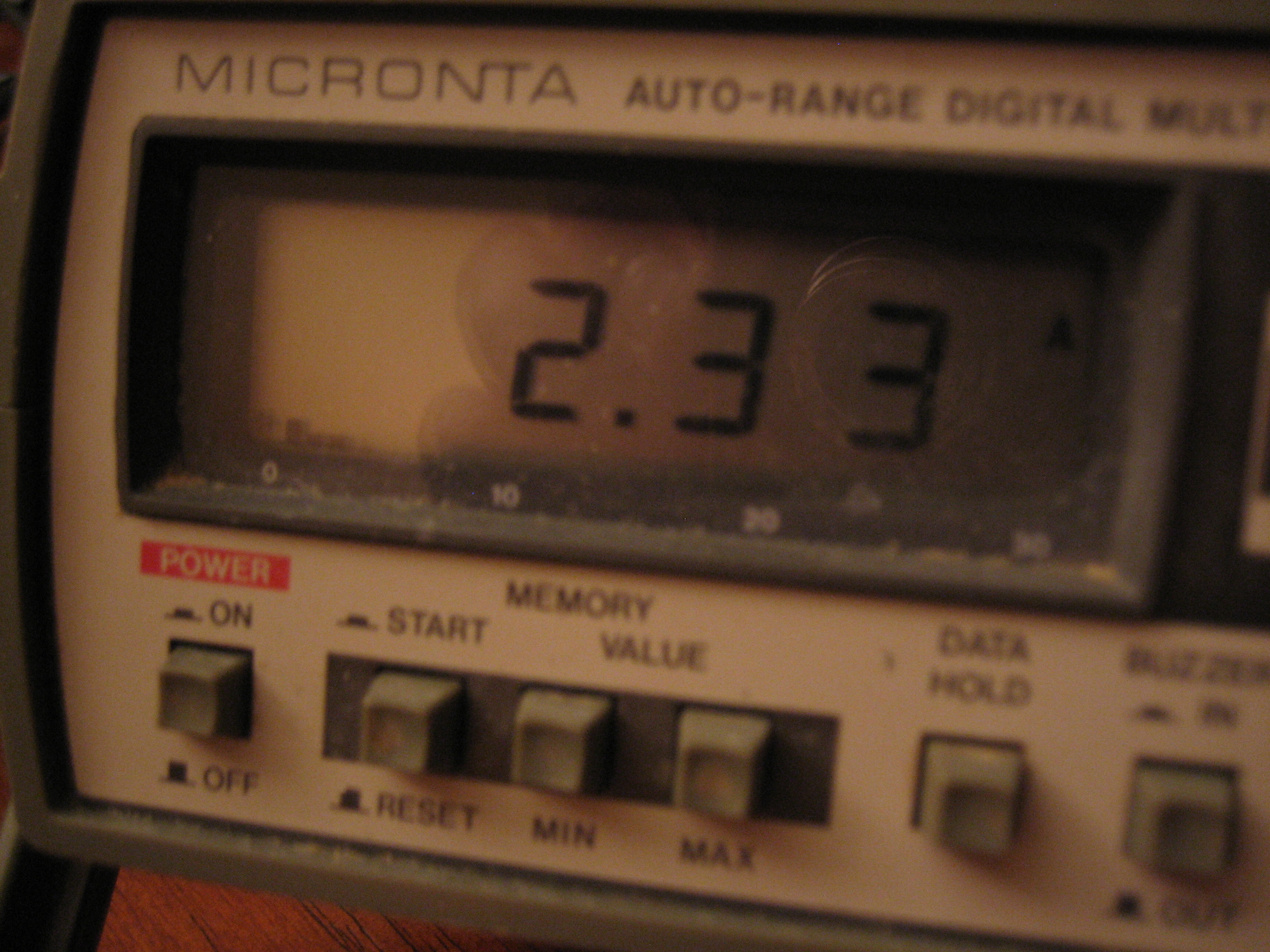

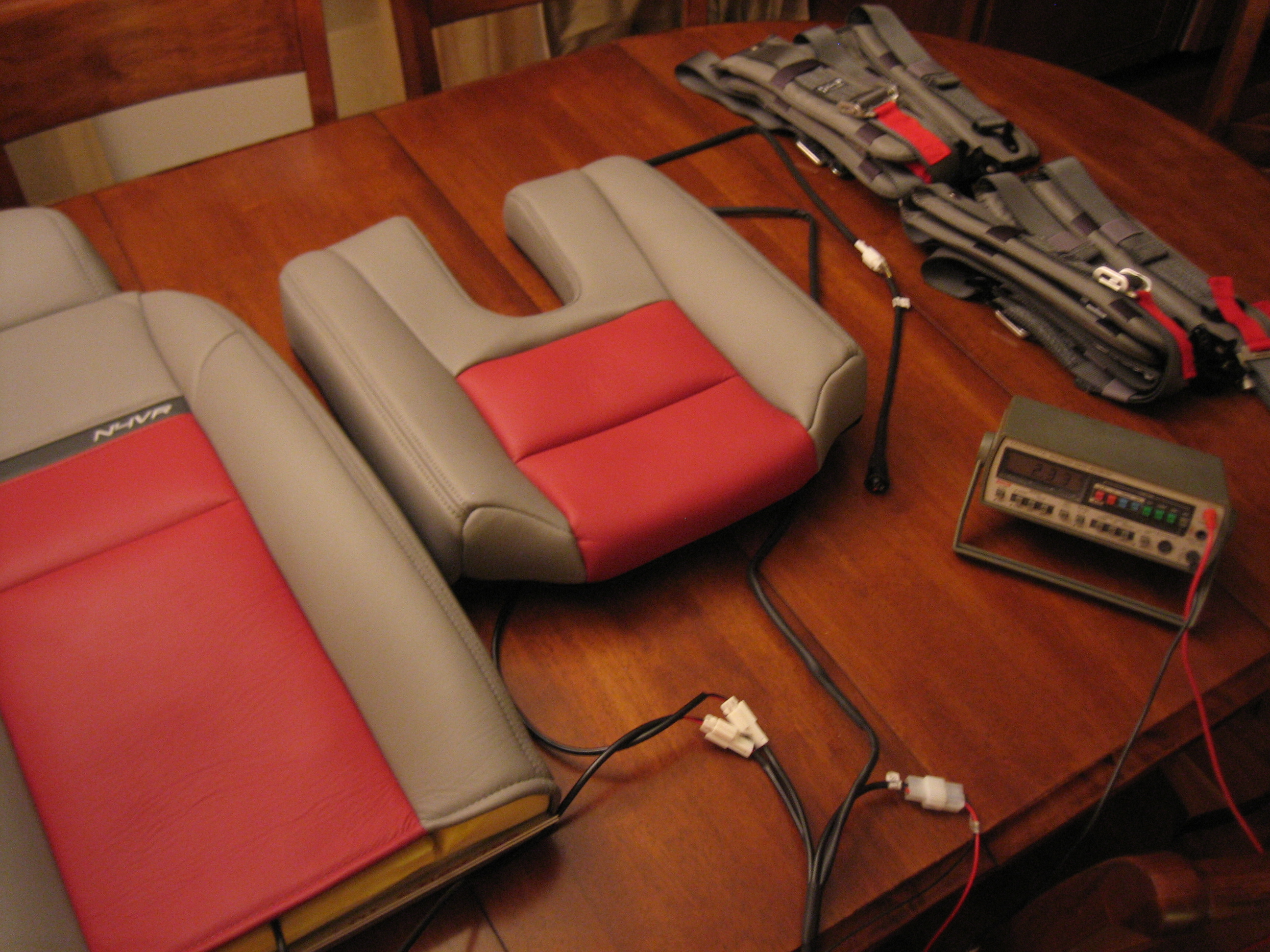

I hooked up a power supply to see how much current the seat heaters draw.
I was pleasantly surprised to see that they drew much less than I anticipated. The website says that they draw about 5A per seat on high, but I’m seeing less than half that. On low, they only pull about 0.7A per seat.

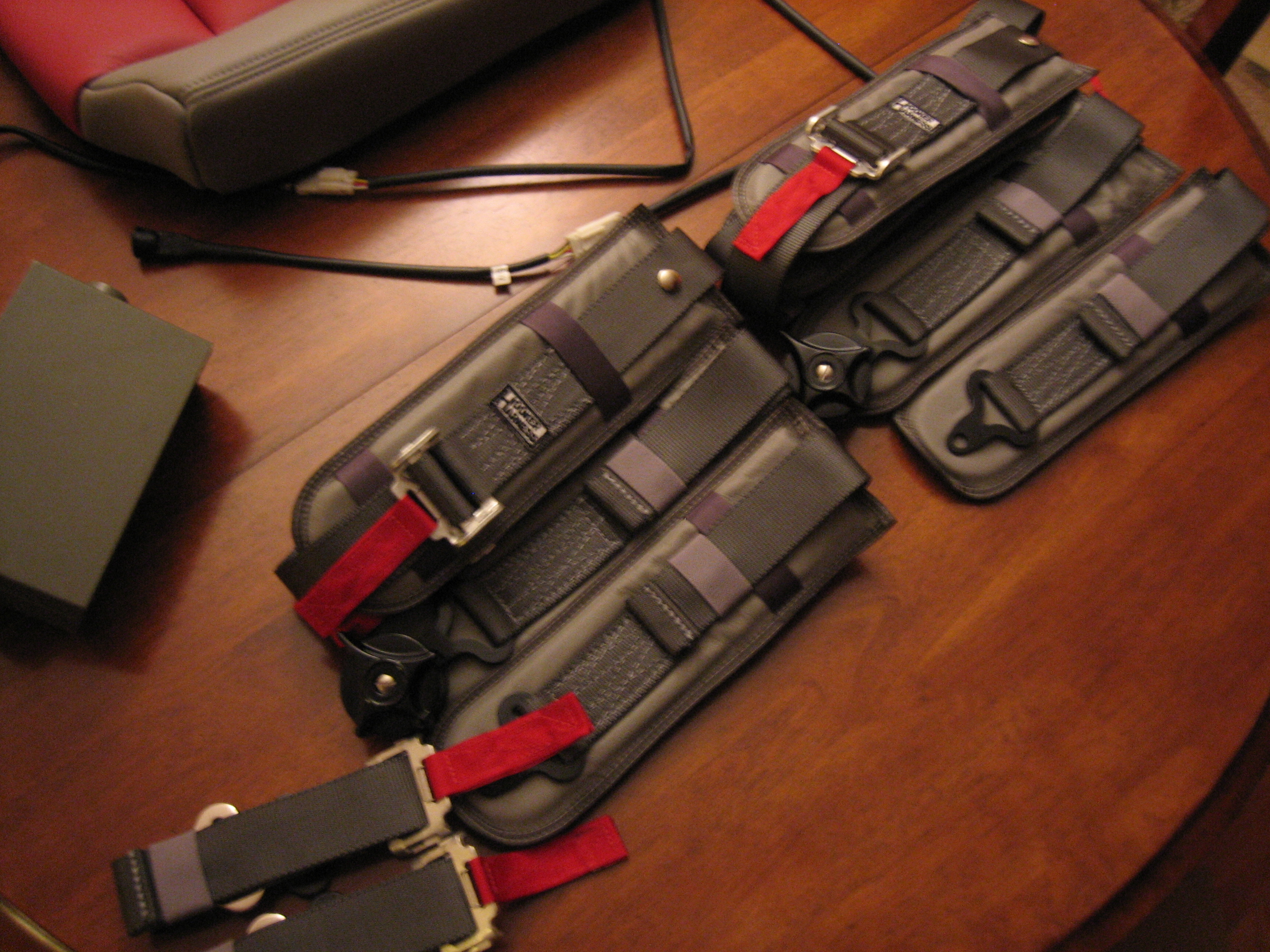

My Hooker Harness harnesses also arrived. I had Classic Aero make the pads out of the same leather used on the seats with some red pull tabs to go with the other red accents in the cockpit.

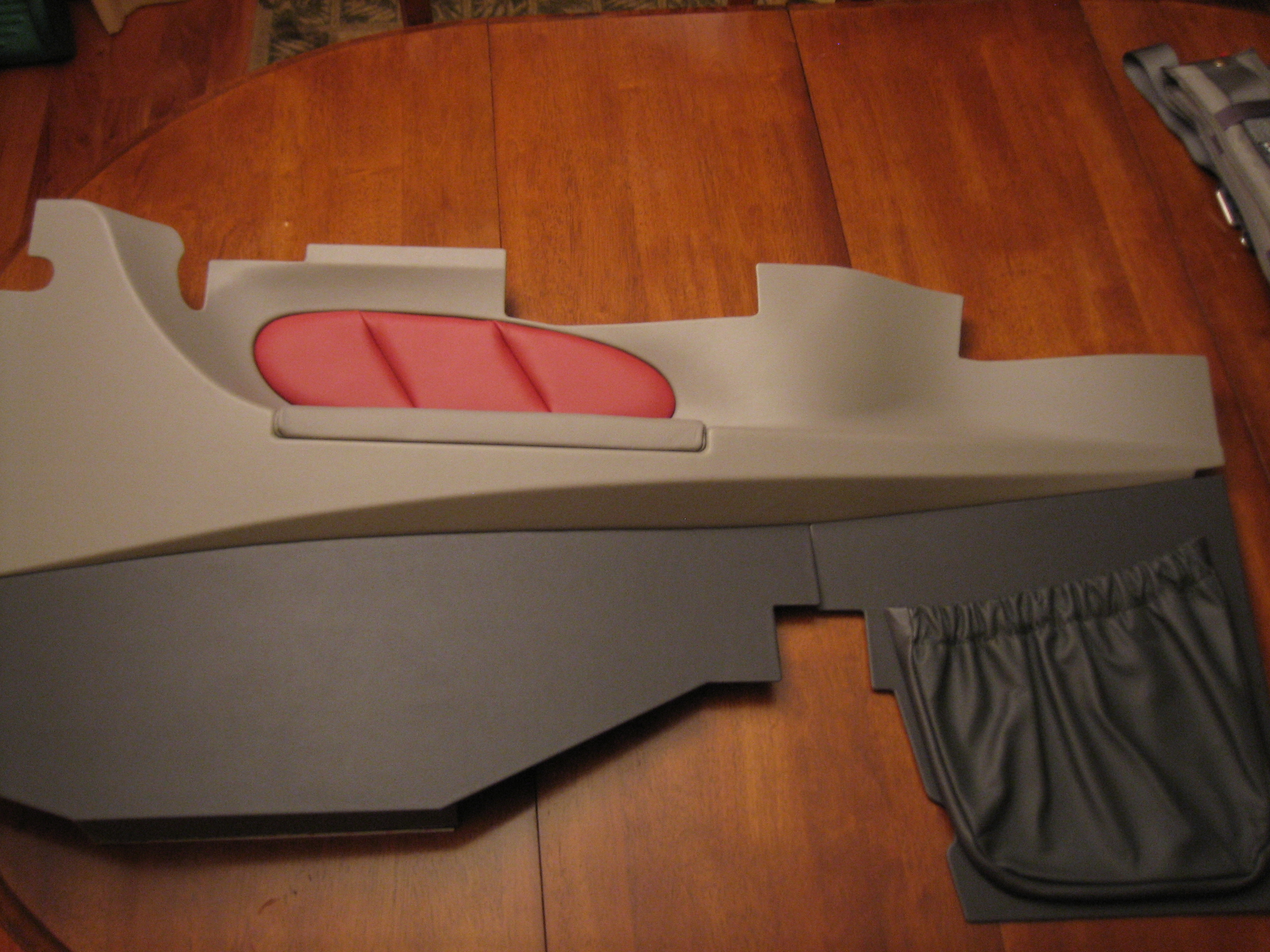

Here are some of the side pieces. There covered in vinyl with a leather armrest, side pad, and pocket.

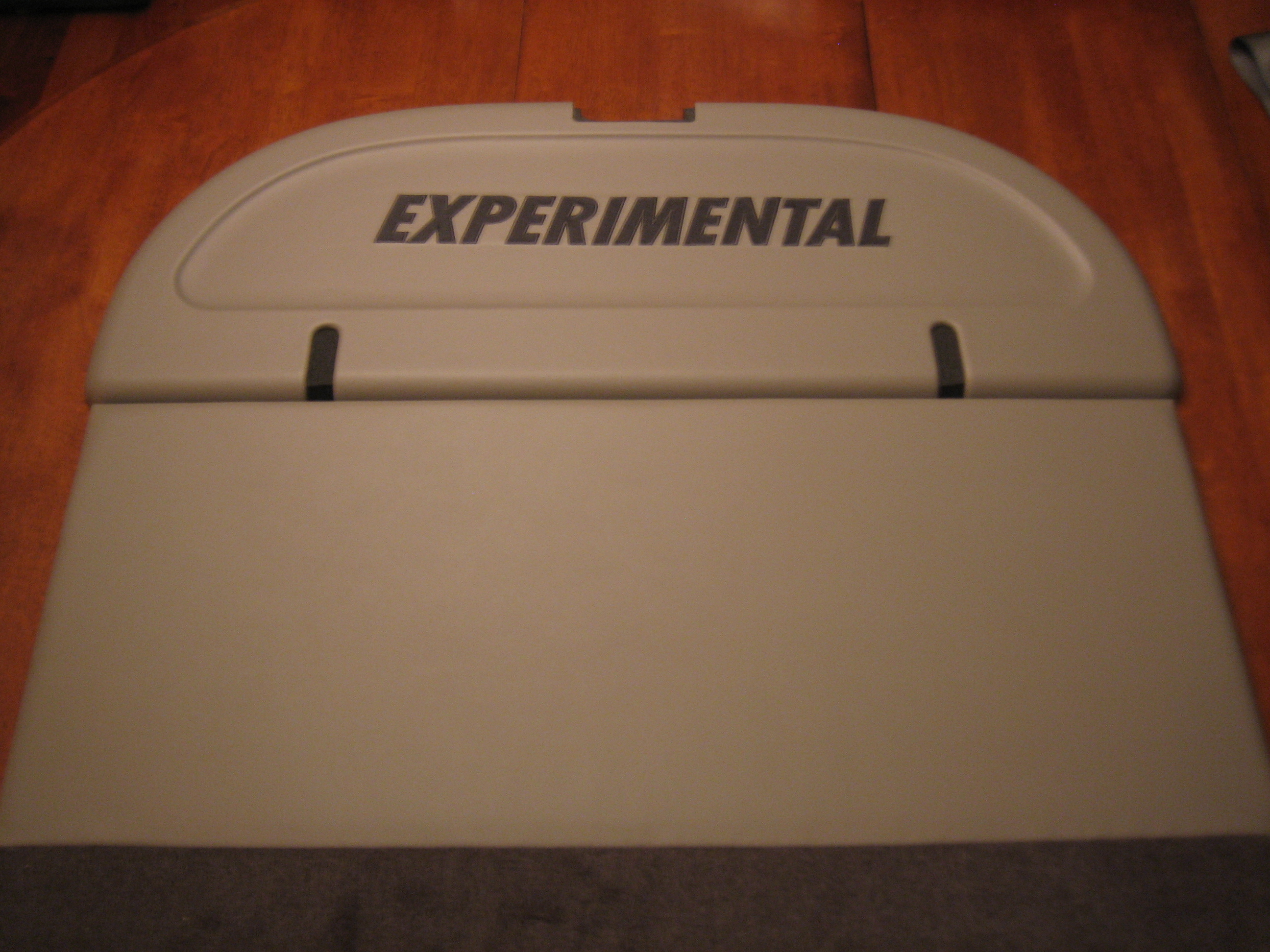

Here are the pieces that cover the back wall. In addition to these pieces, there are pieces that cover the baggage side walls and carpet for the forward floor, seating and baggage areas.
