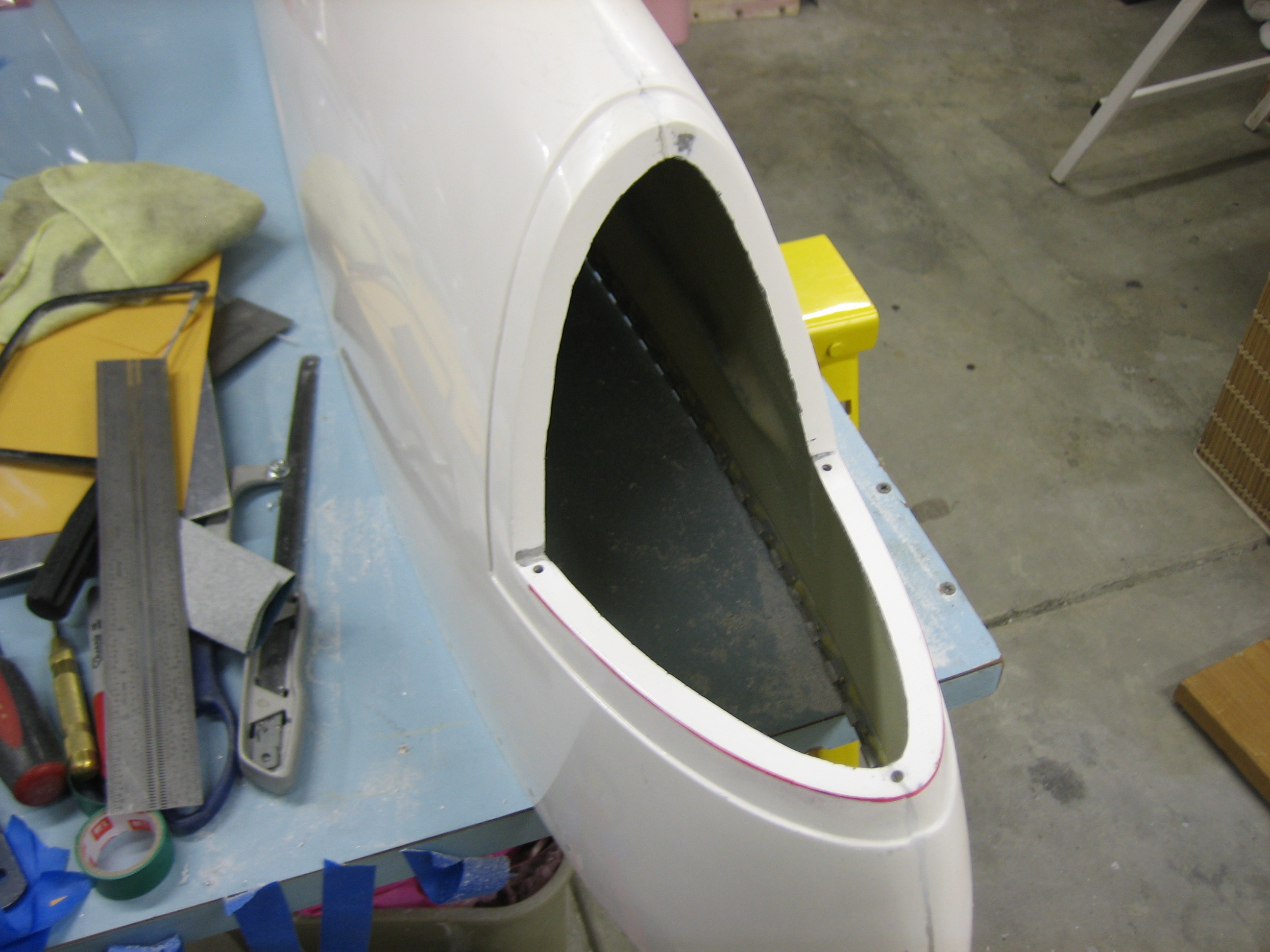

Now that I have a pretty good idea how the wingtip lights will be mounted, I could do the work on the other wingtip. I marked and cut out most of the recess.

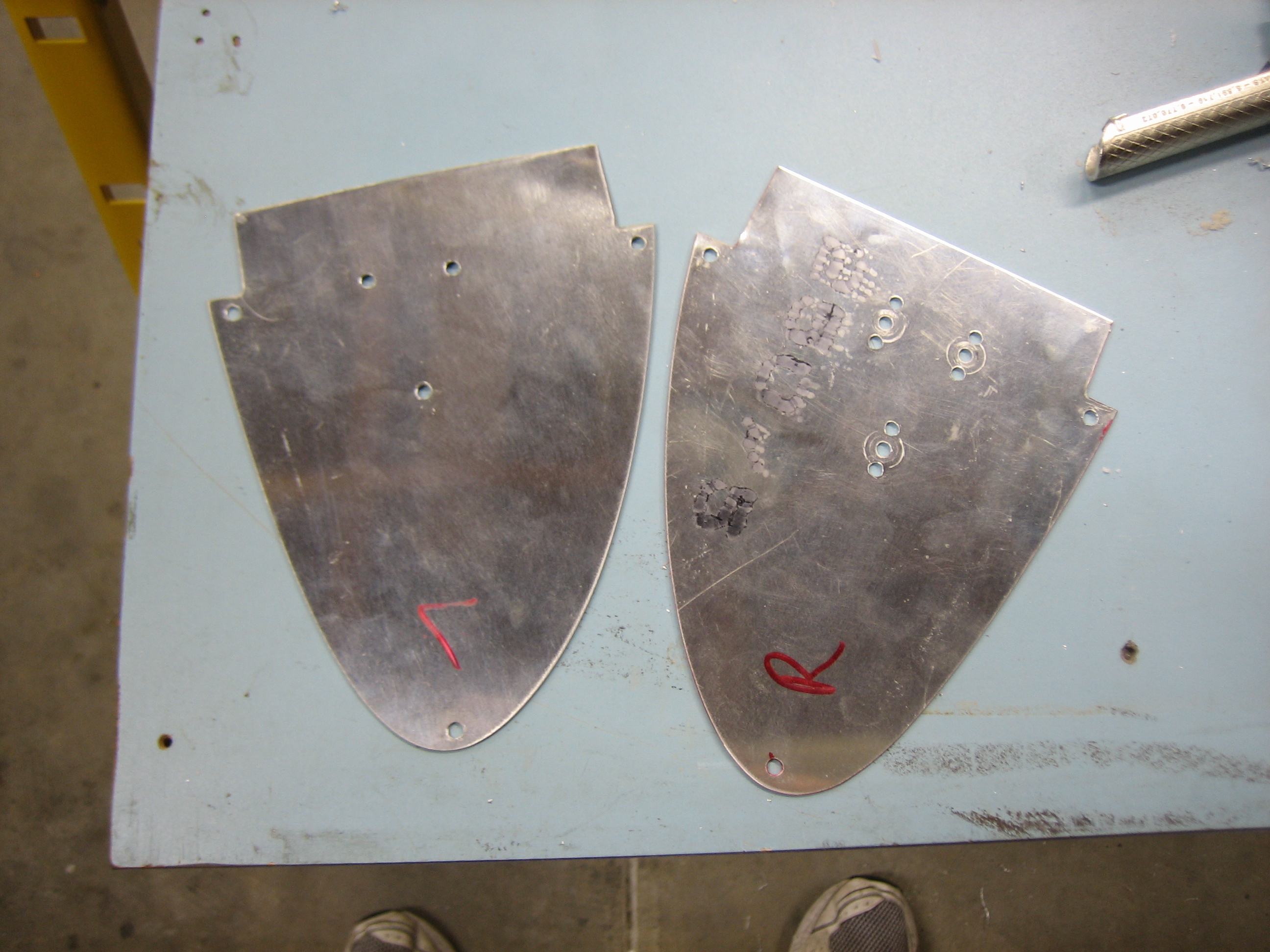

I then fabricated an approximate duplicate of the right mounting plate and then trimmed it to fit the left wingtip. The two wingtips are slightly different, so I couldn’t make an exact duplicate. I then transferred the plate mounting holes and the center set of light mounting holes. You can see in the previous picture that I also drilled the plate to the wingtip. All that is left now is to finish getting the lenses to fit properly.
