I picked up my wings from my next door neighbor where he’s graciously stored them for the past nearly two years. I’m going to be mating them to the fuselage in about a week. Since I’ll be moving to the airport in a few months, I’ll probably just end up storing them on the side of my house till then.

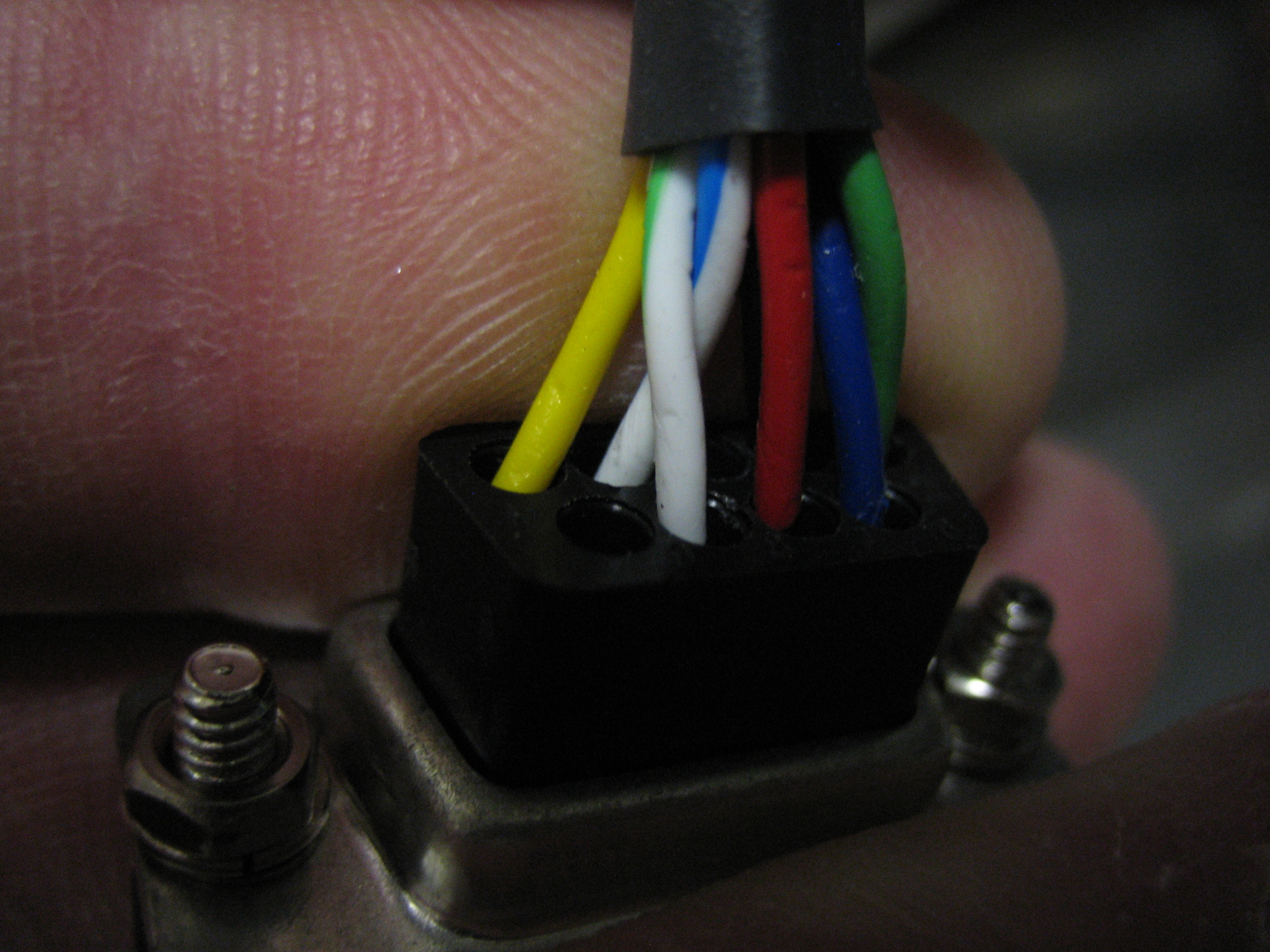

I installed a male DB-9 connector on the end of the wires from the roll servo. I took this picture mostly to document the wire positions in the connector. Not easily visible is the black wire that is connected to pin #2 (straight behind the red wire and just to the left of the green wire).

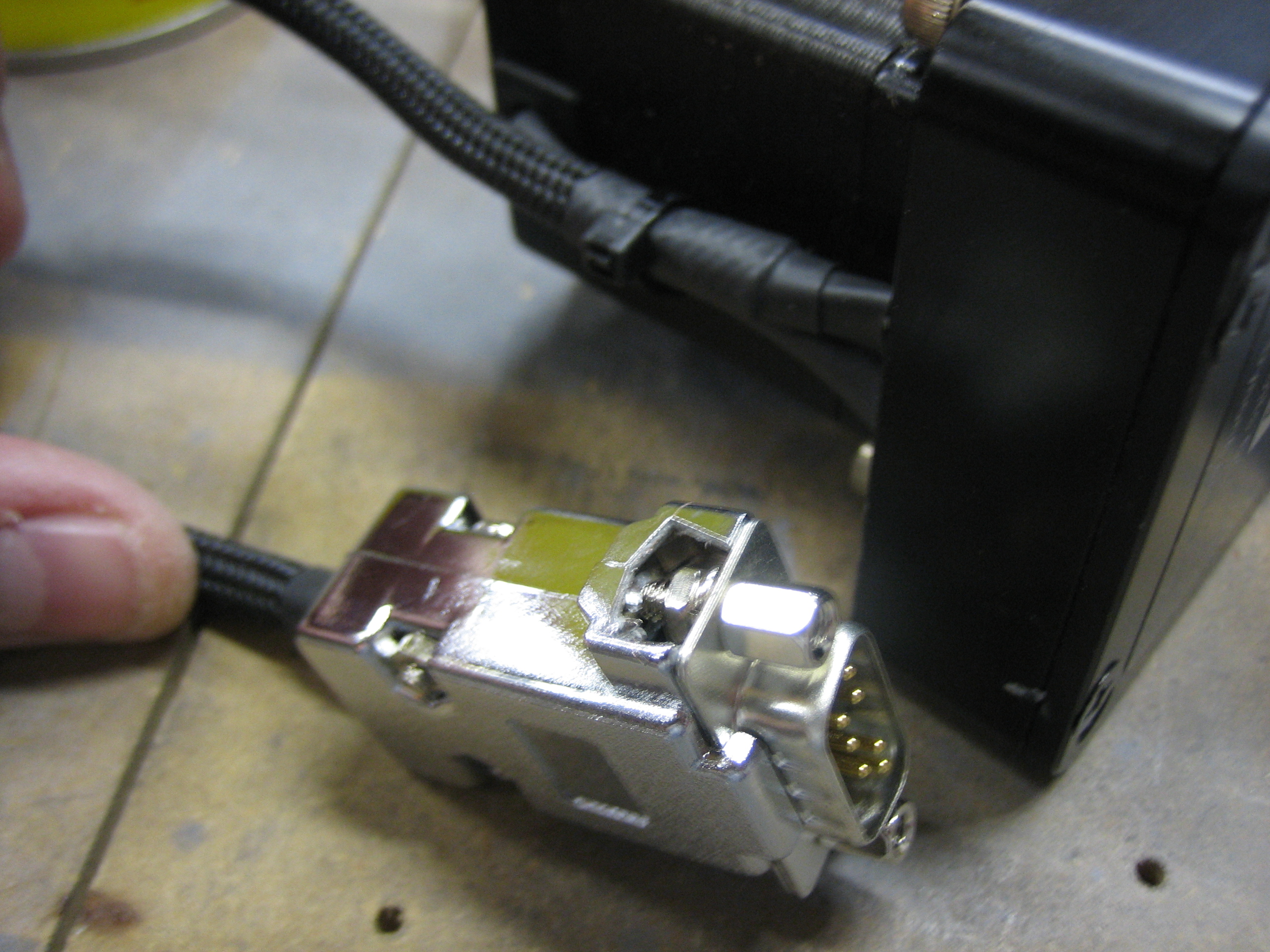

Here’s the finished connector with some expandable nylon sleeving over the bundle.
