Installed Canopy Frame and Related Components

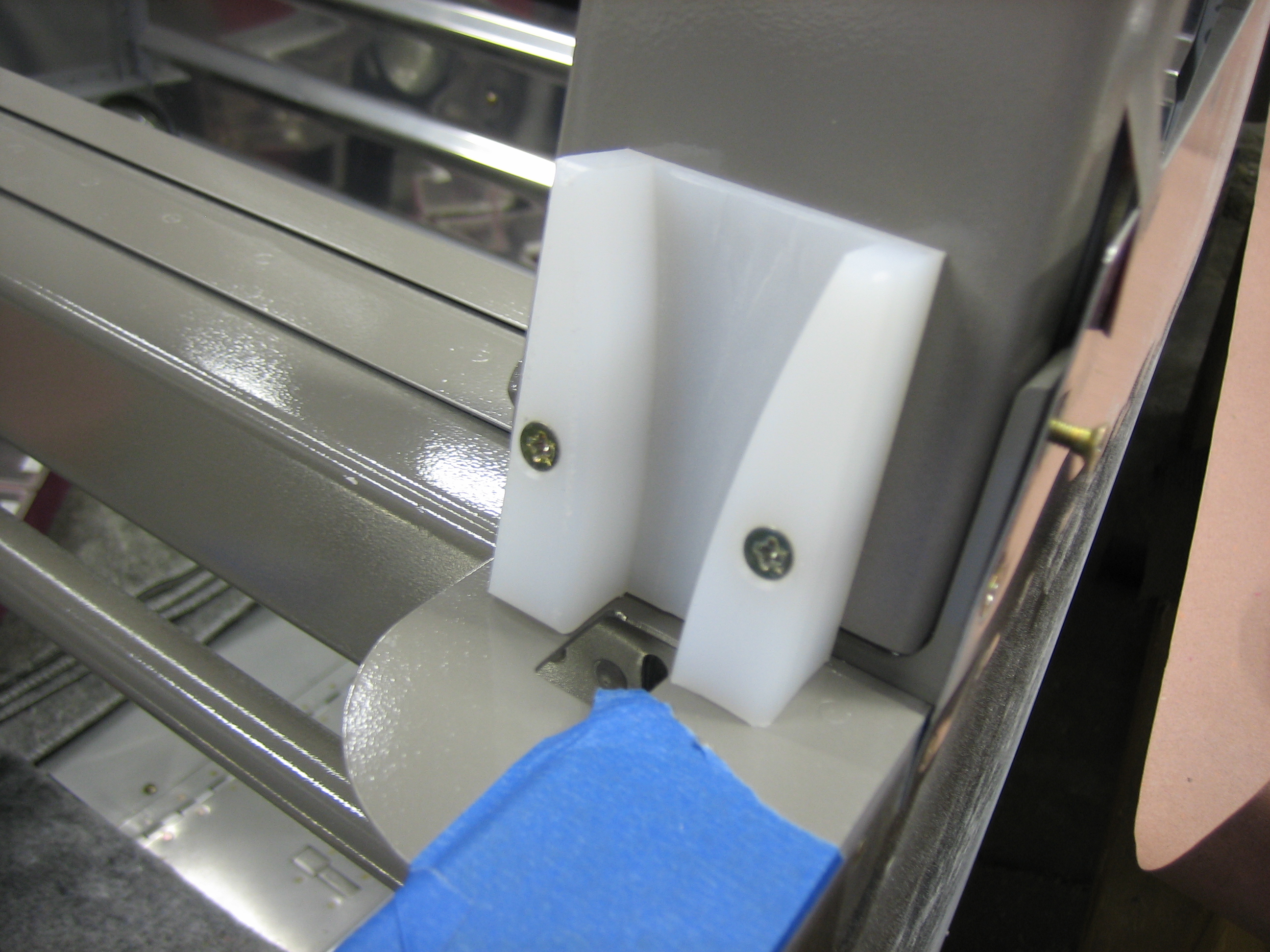

After a quick trip to Disneyland with the family, I resumed work installing the canopy components for the last time. Here are the guide blocks installed.

I also installed the canopy lift strut mounts.

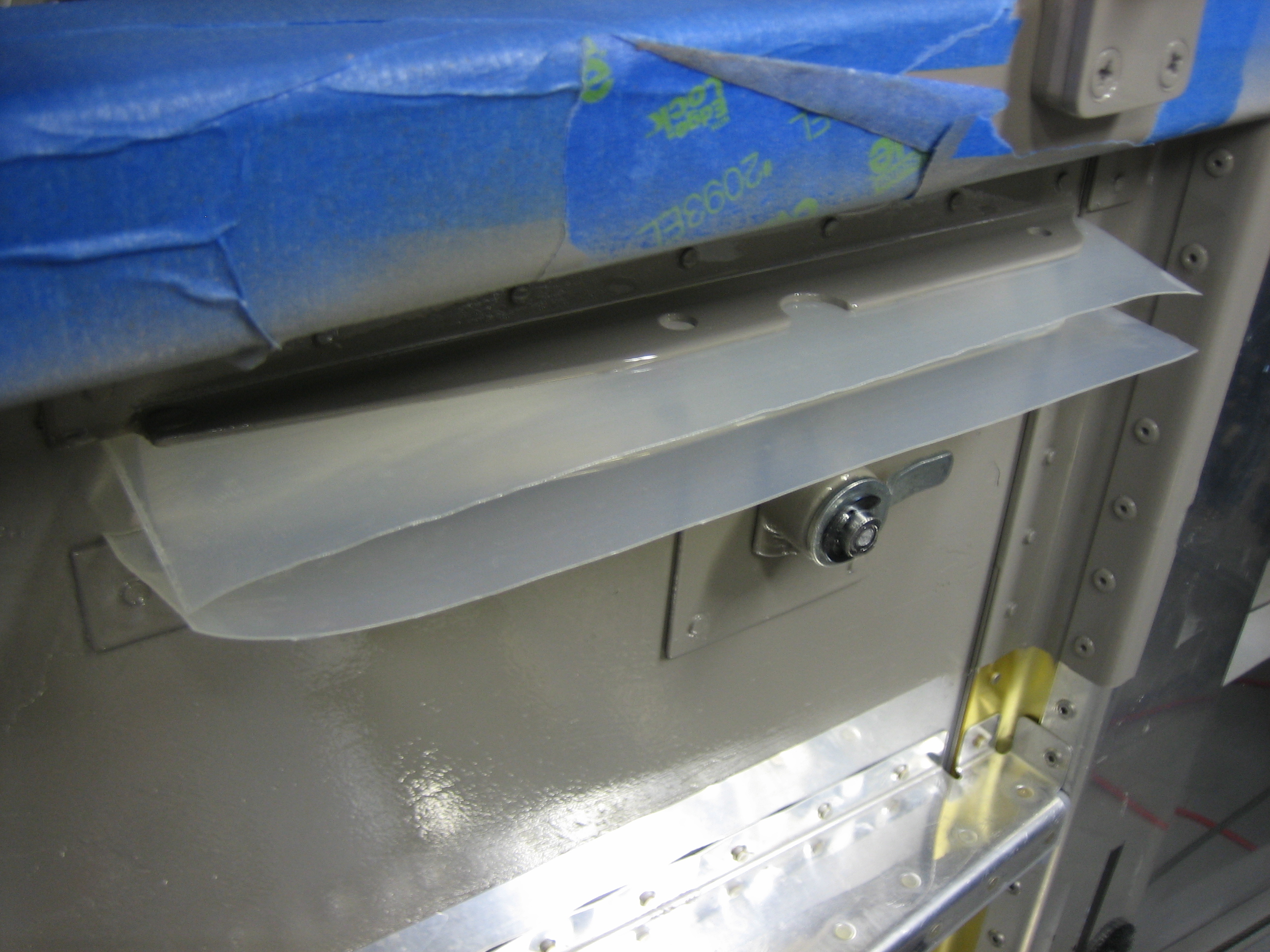

I installed some UHMW tape on the canopy latch mounting brackets and then trimmed them flush with the edges.  Punching the bolt holes was a pain, but I got it done.

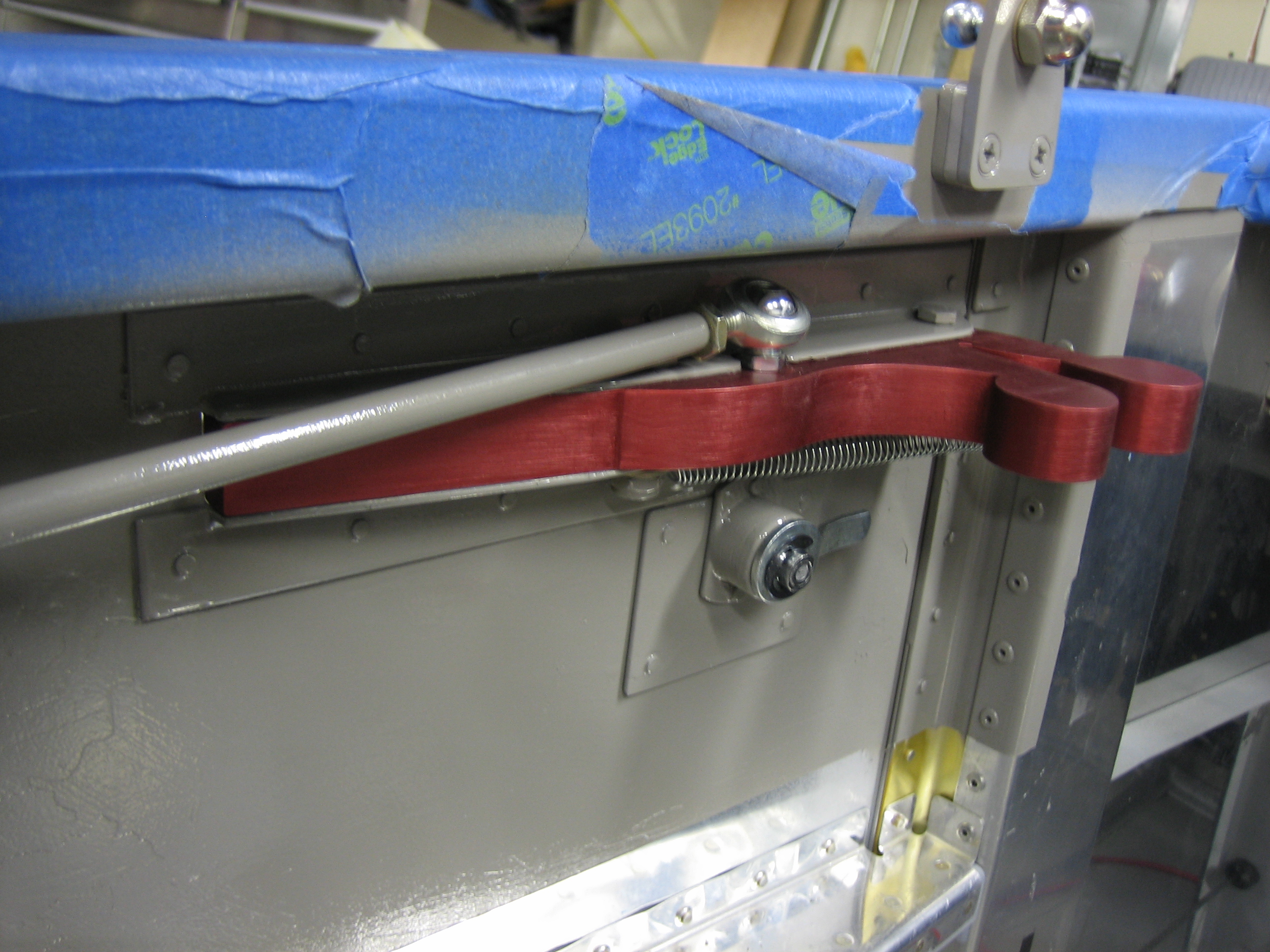

I got the canopy latch back from the anodizing shop and installed it as well.

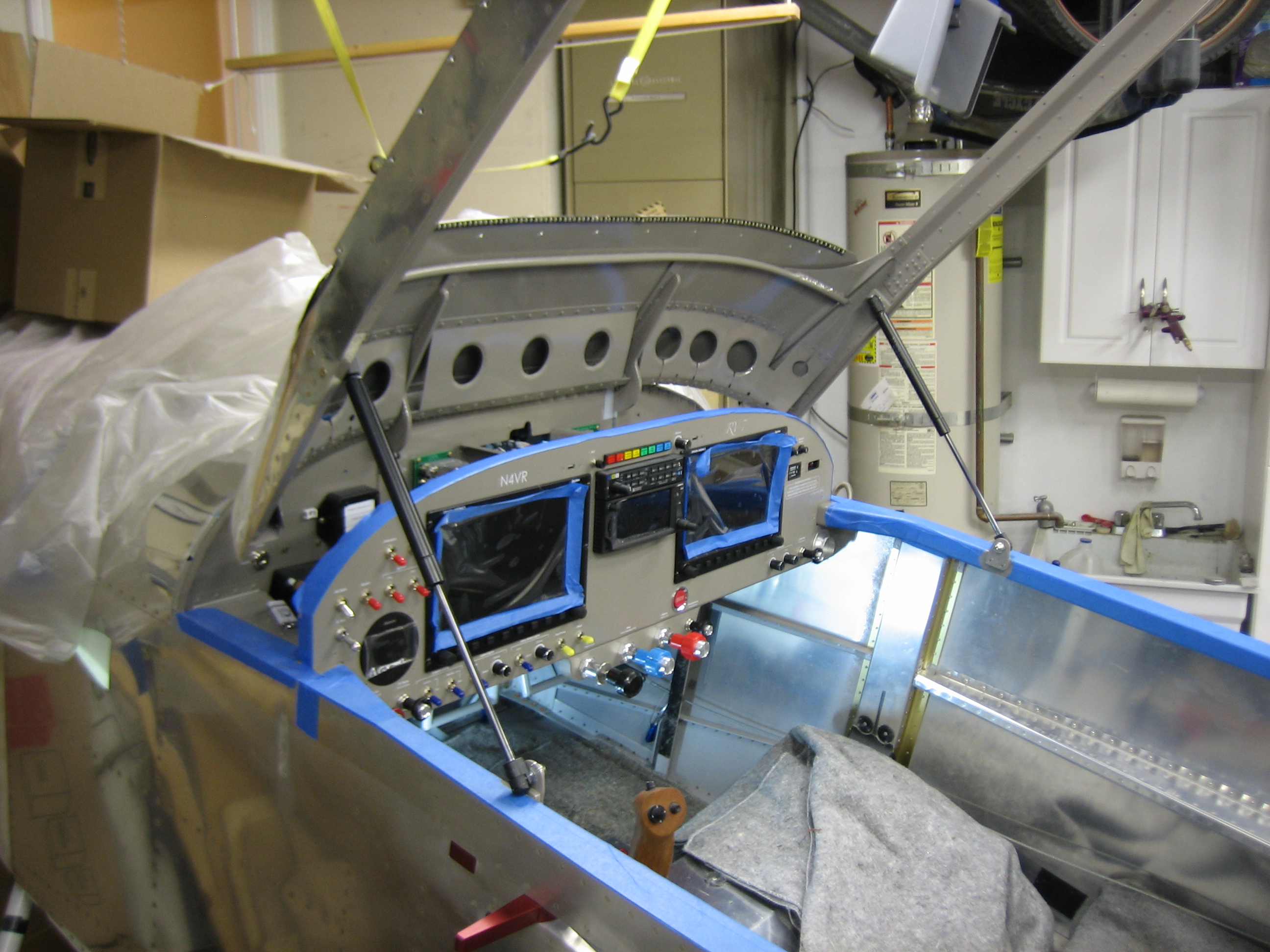

Finally, I installed the canopy frame and the lift struts.  I got the bolts in, but am not going to torque them down unless I’m sure the canopy frame will not need to come off again.
