I started fitting the interior by placing the seating area carpet and then installing small circular velcro tabs to hold the carpet down. I may install a few more, but this anchors things pretty well.

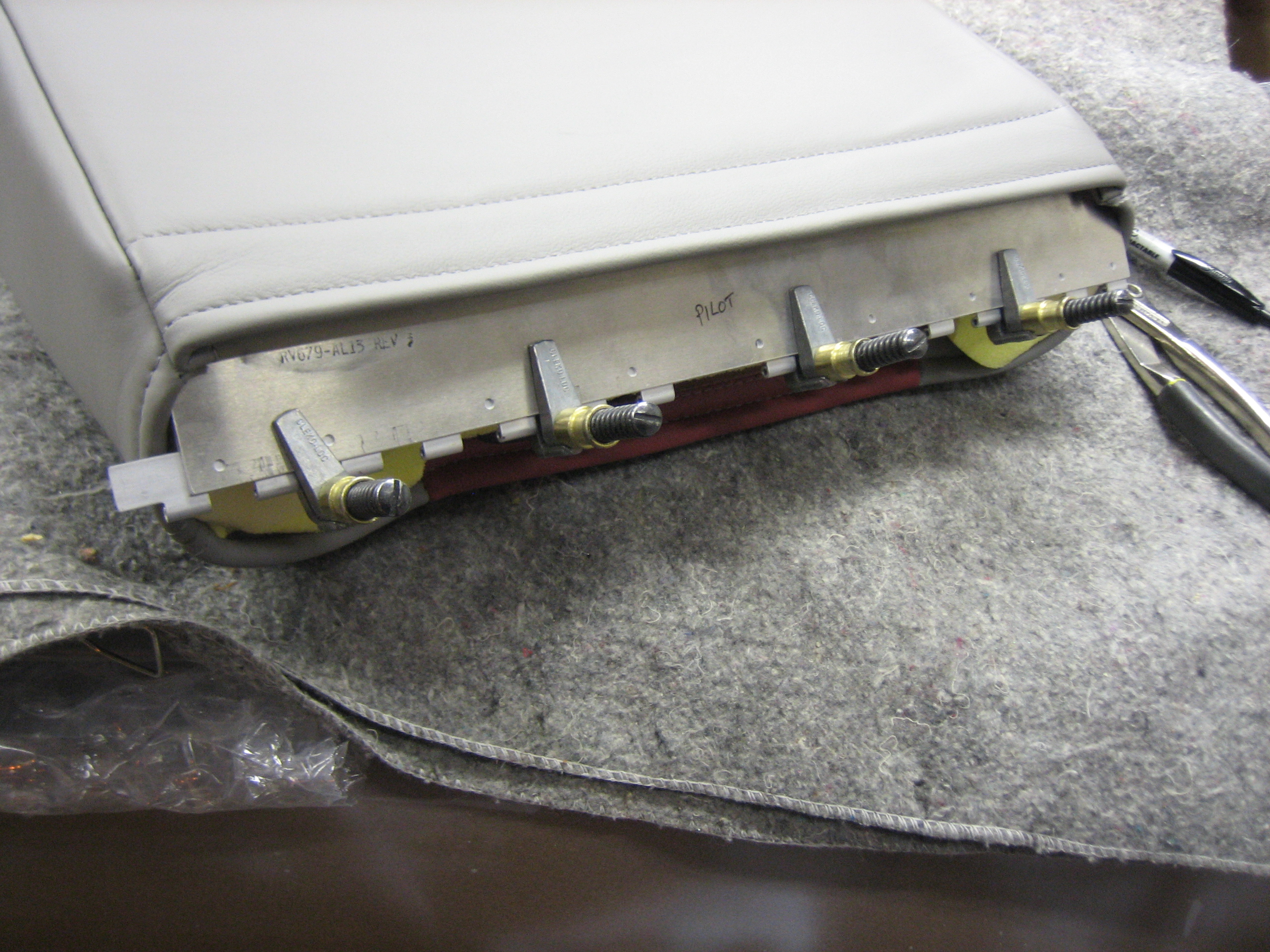

I marked the centerline of the hinge inline with the stick and then installed the hinge so that the centerline is visible through the pre-drilled center rivet hole on the seat flange.

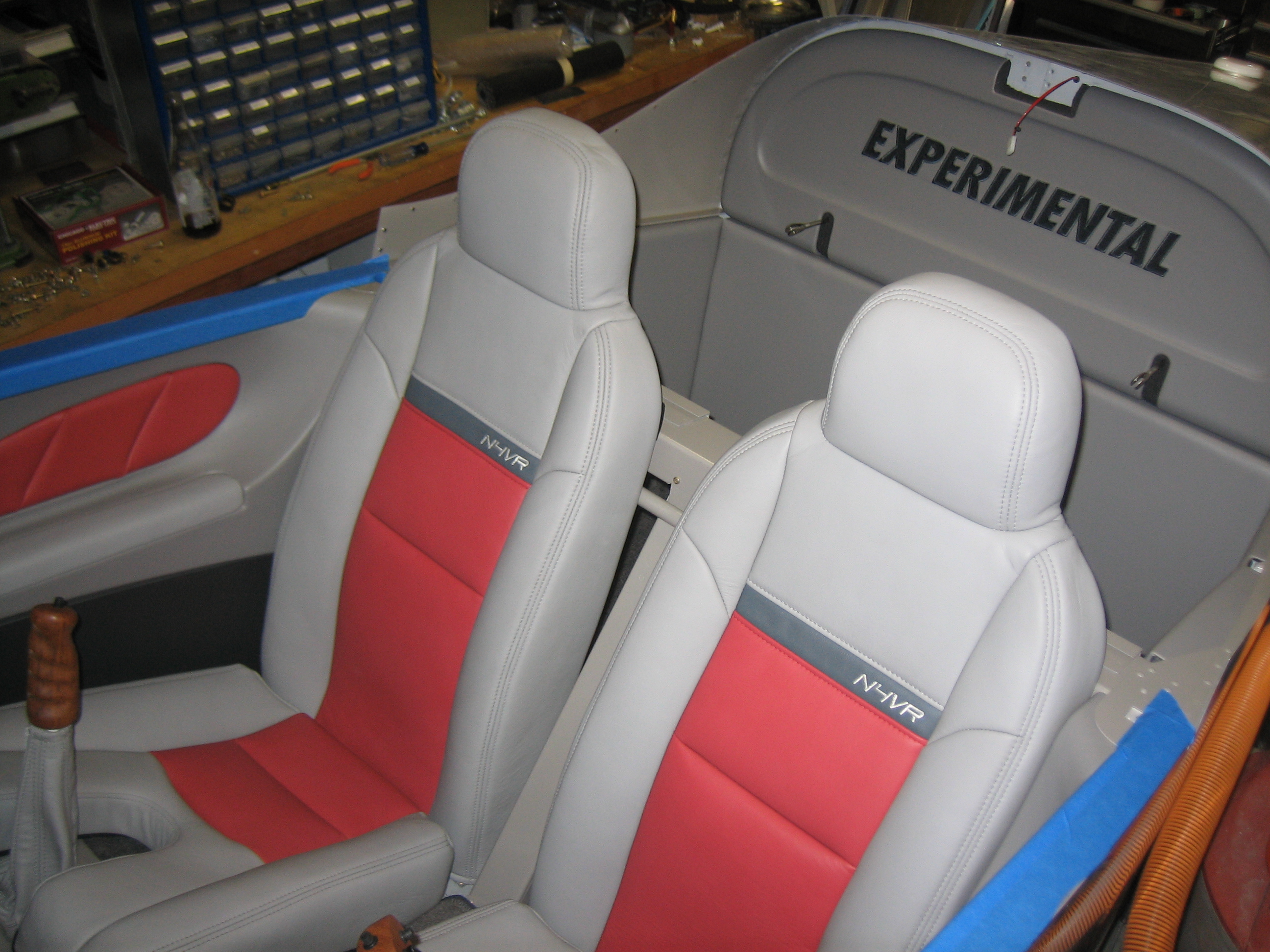

I then installed the sides and seat backs. The baggage area panels are currently just sitting in place to see how they fit before installing them for good.

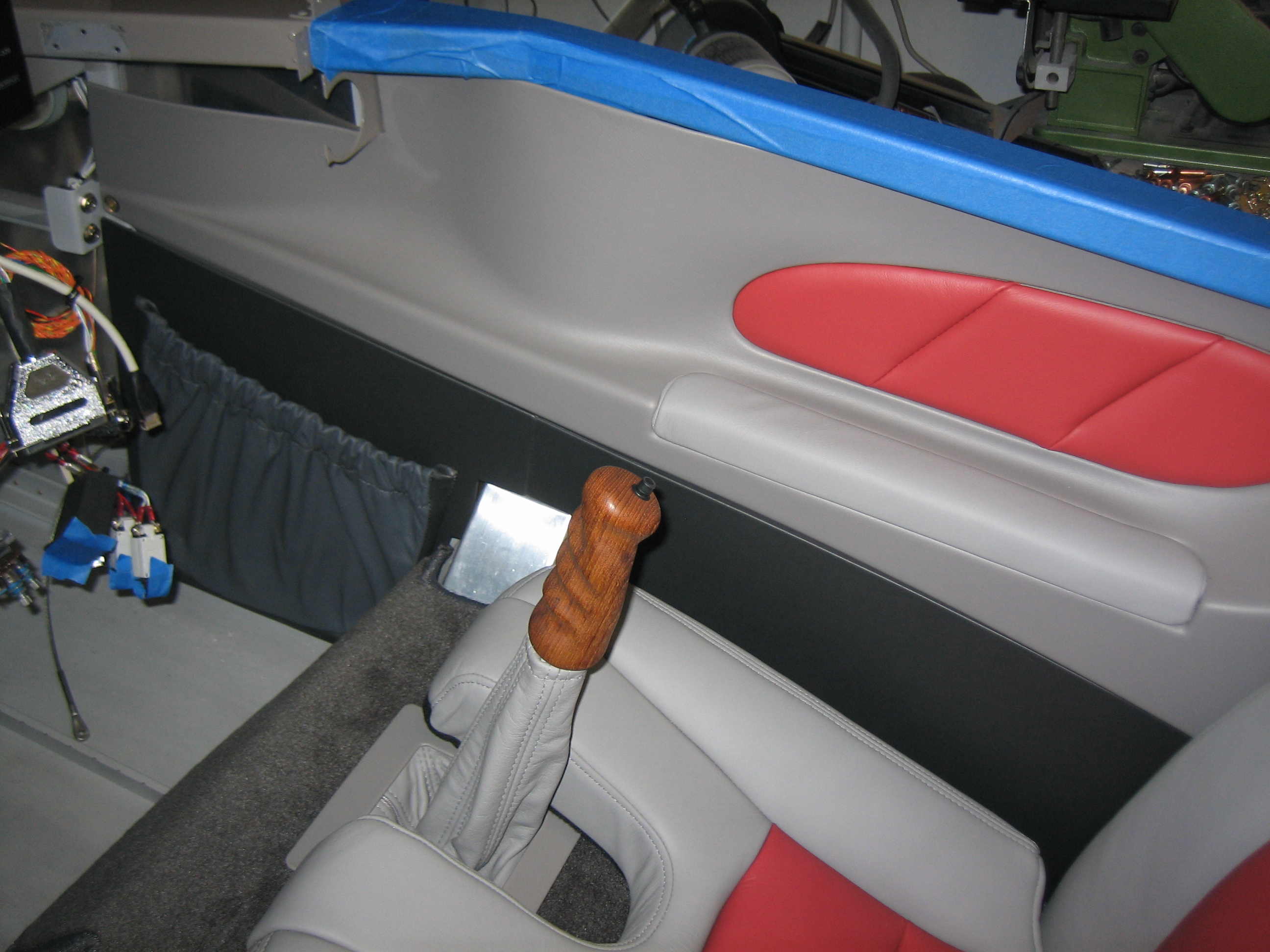

The side panels are comprised of three pieces, the upper light gray panel with the integrated armrest and two lower dark gray panels.

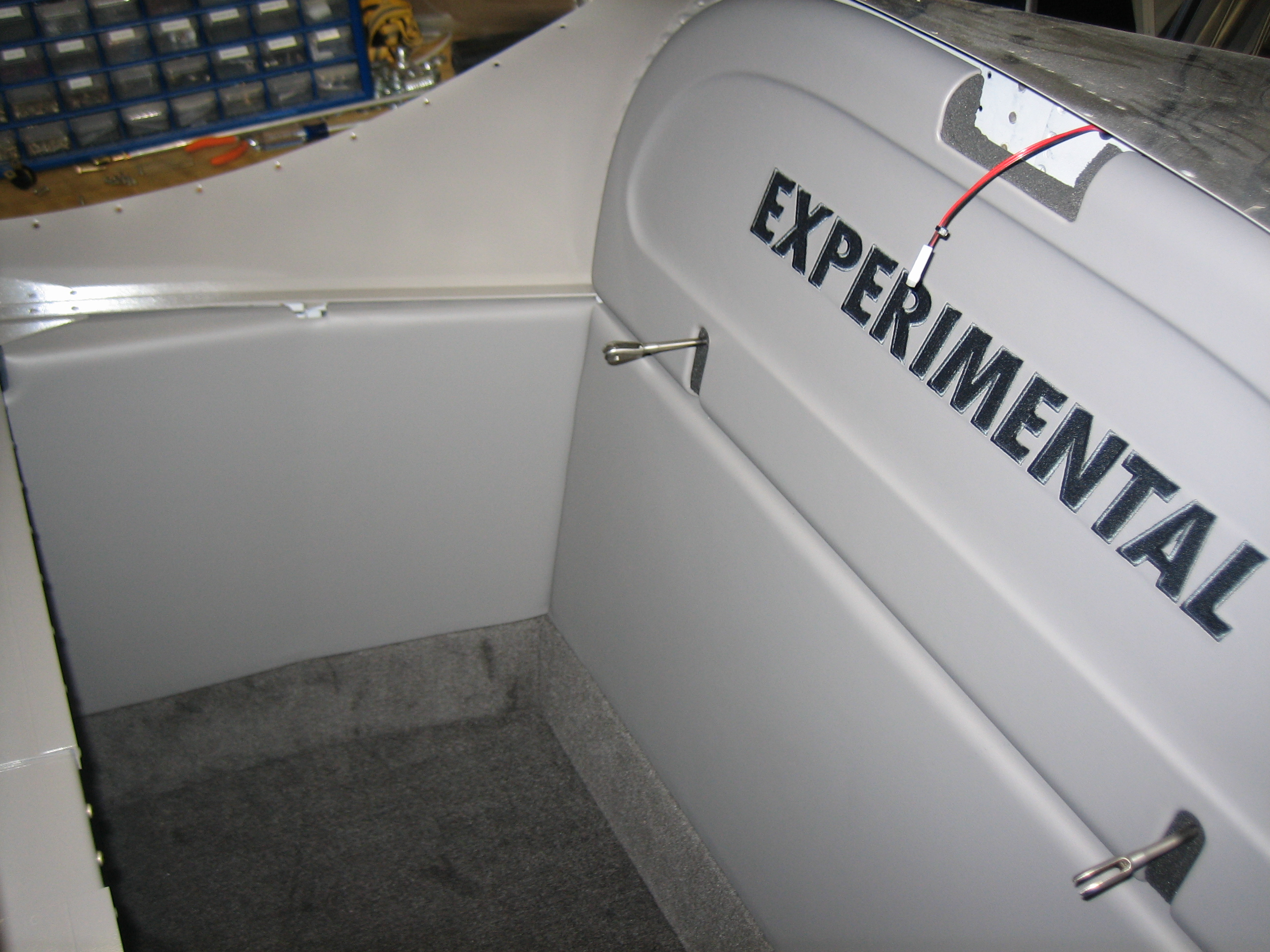

The baggage area panels includes the flooring carpet, side panels, and two back panels.

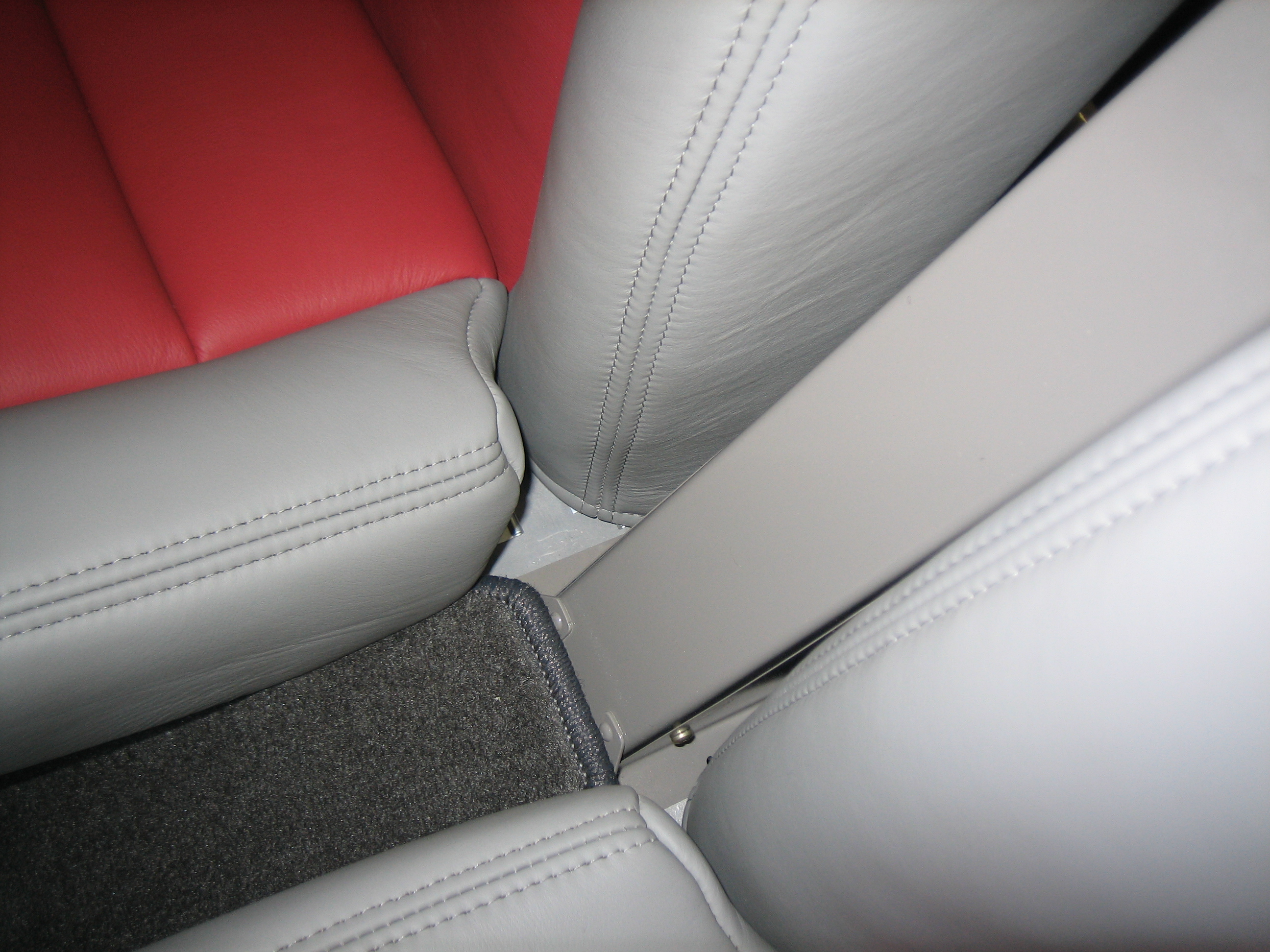

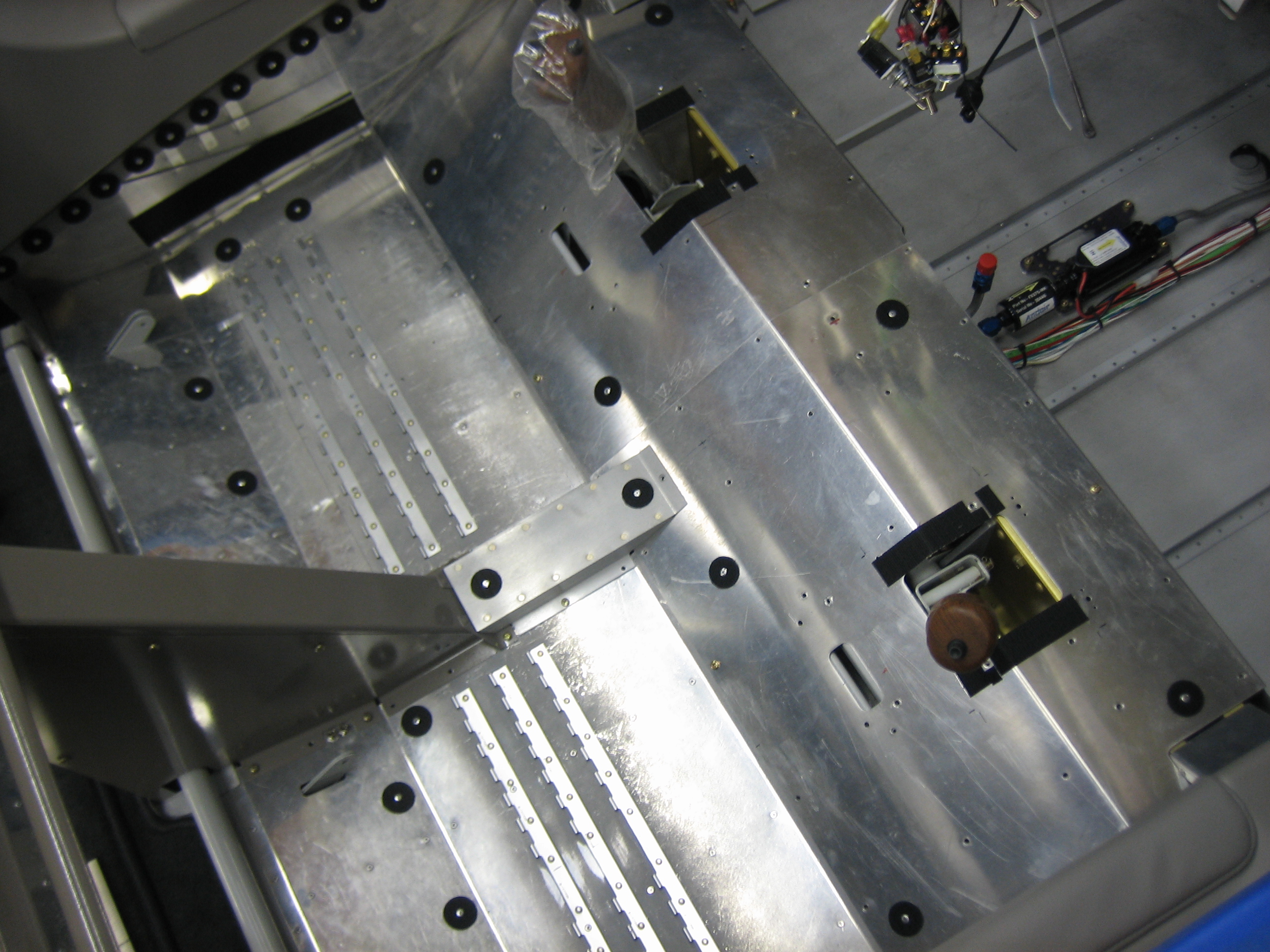

Unfortunately, there are several areas where the floor is visible between parts of the seats and carpet. I’ll have to paint these parts of the floor dark gray to match the carpet.
