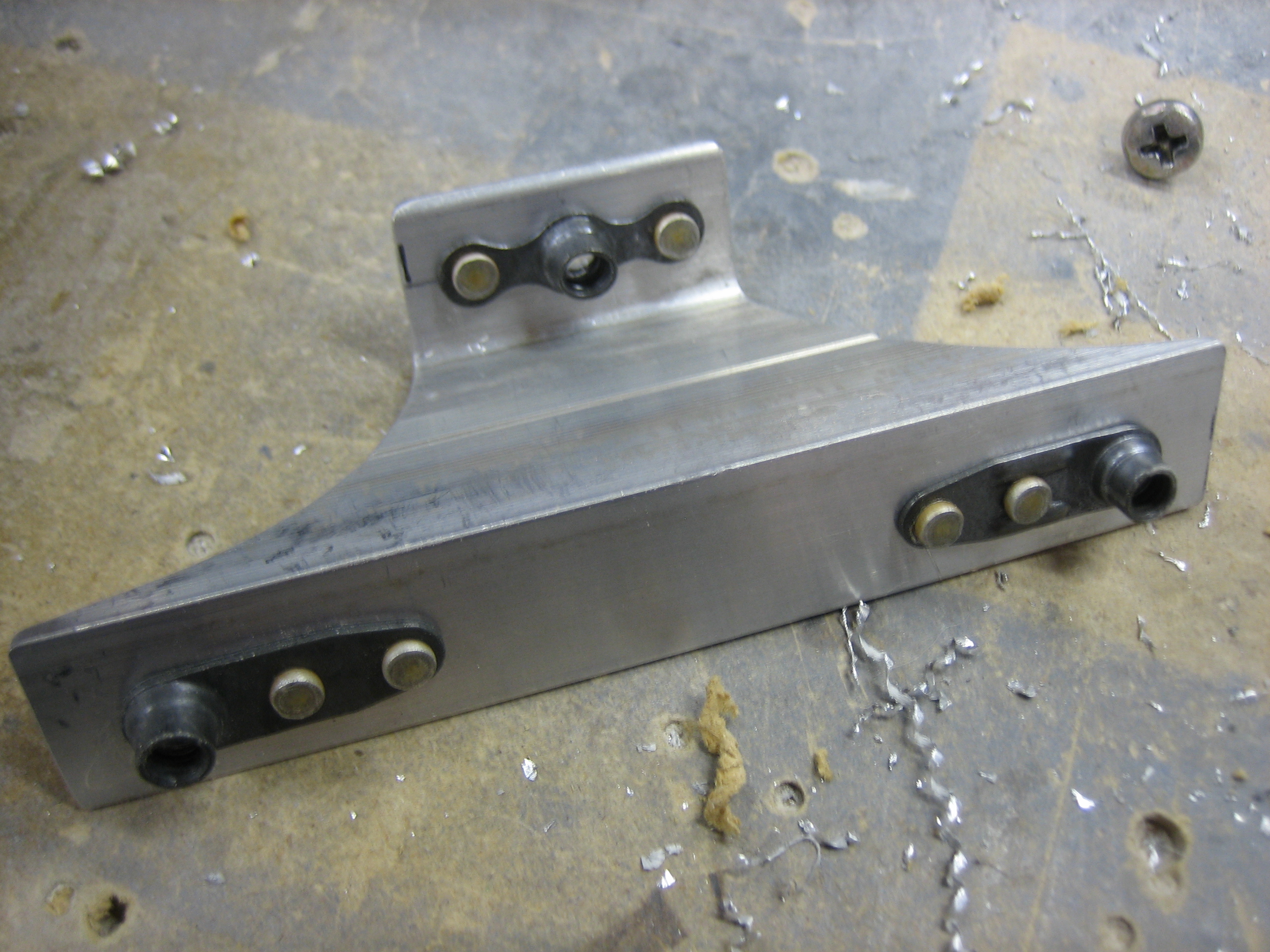

I fabricated a couple of supports for the upper ignition wires. I’ll probably drill a couple of lightening holes to shave off a little weight.
The spark plug wire supports screw to the upper flange of the support.

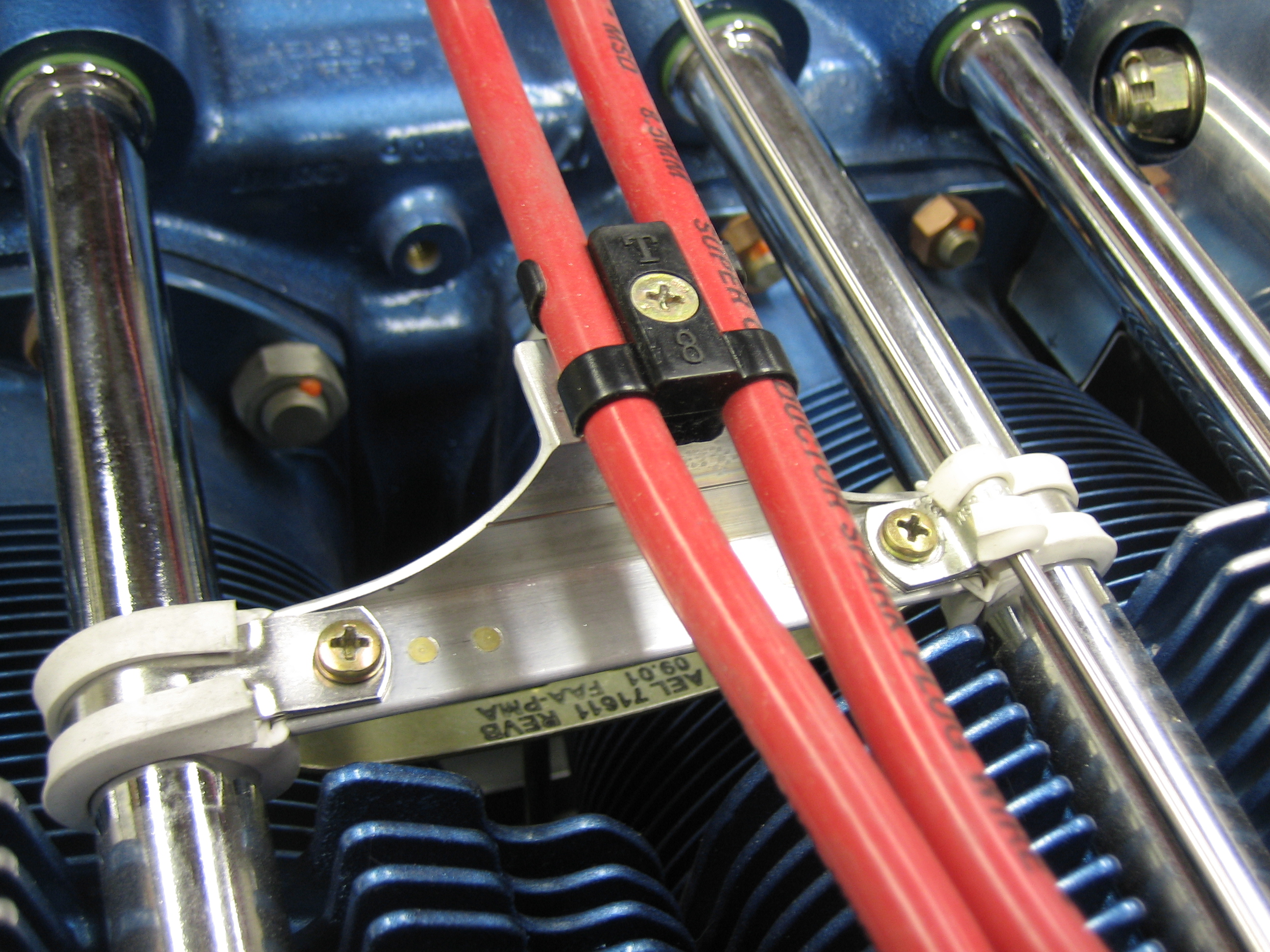

Here’s where they will be installed. They’re clamped to the inner push rod tubes with a couple of adel clamps.

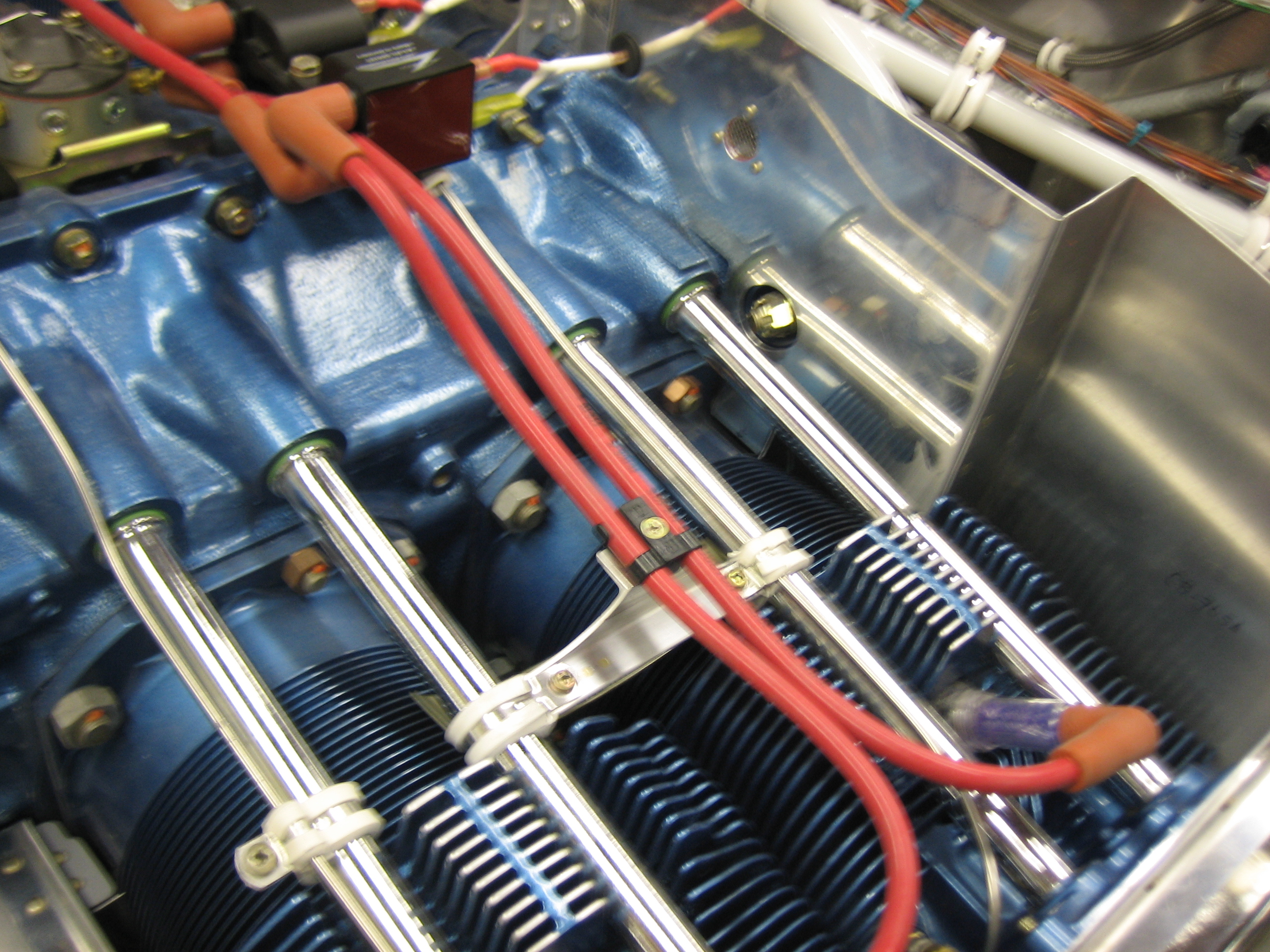

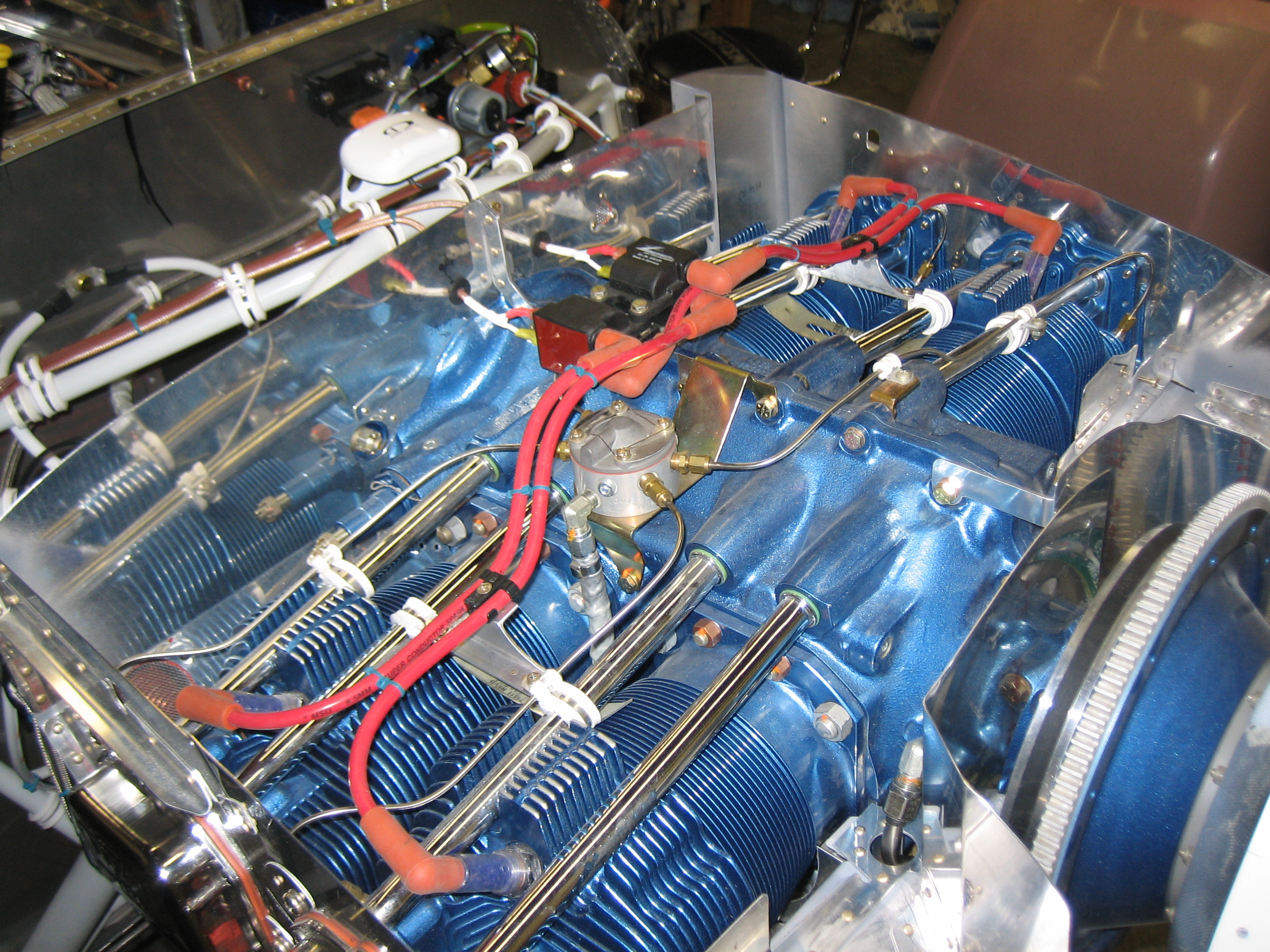

After installing both and adding some Tefzel zip-ties, the wires are really nicely supported and spaced apart.

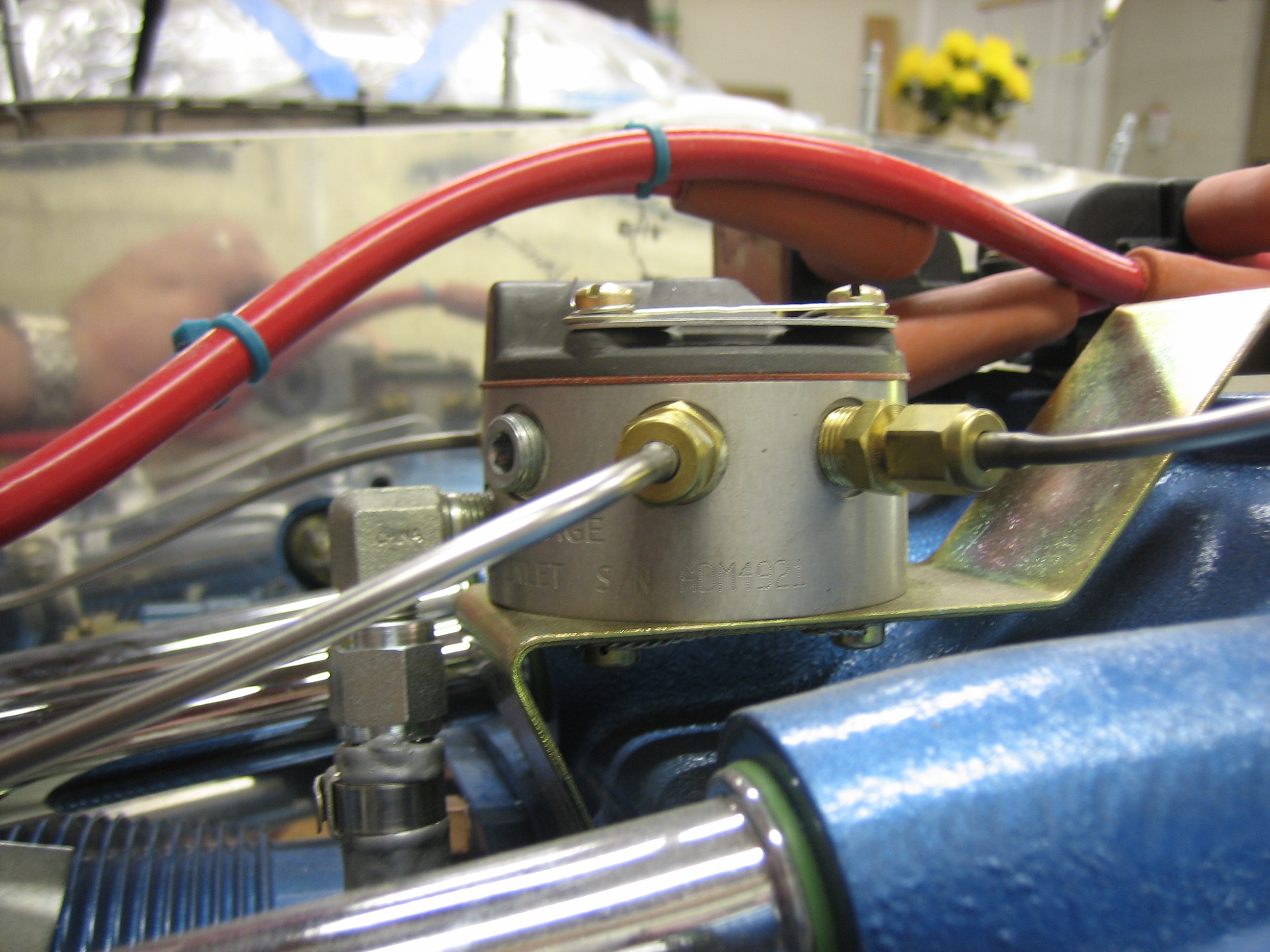

The wires arc up slightly from the coils and curve over the fuel spider. There’s over 1/2″ of clearance and the wires have to be pushed down pretty firmly to deflect anywhere near the spider.
