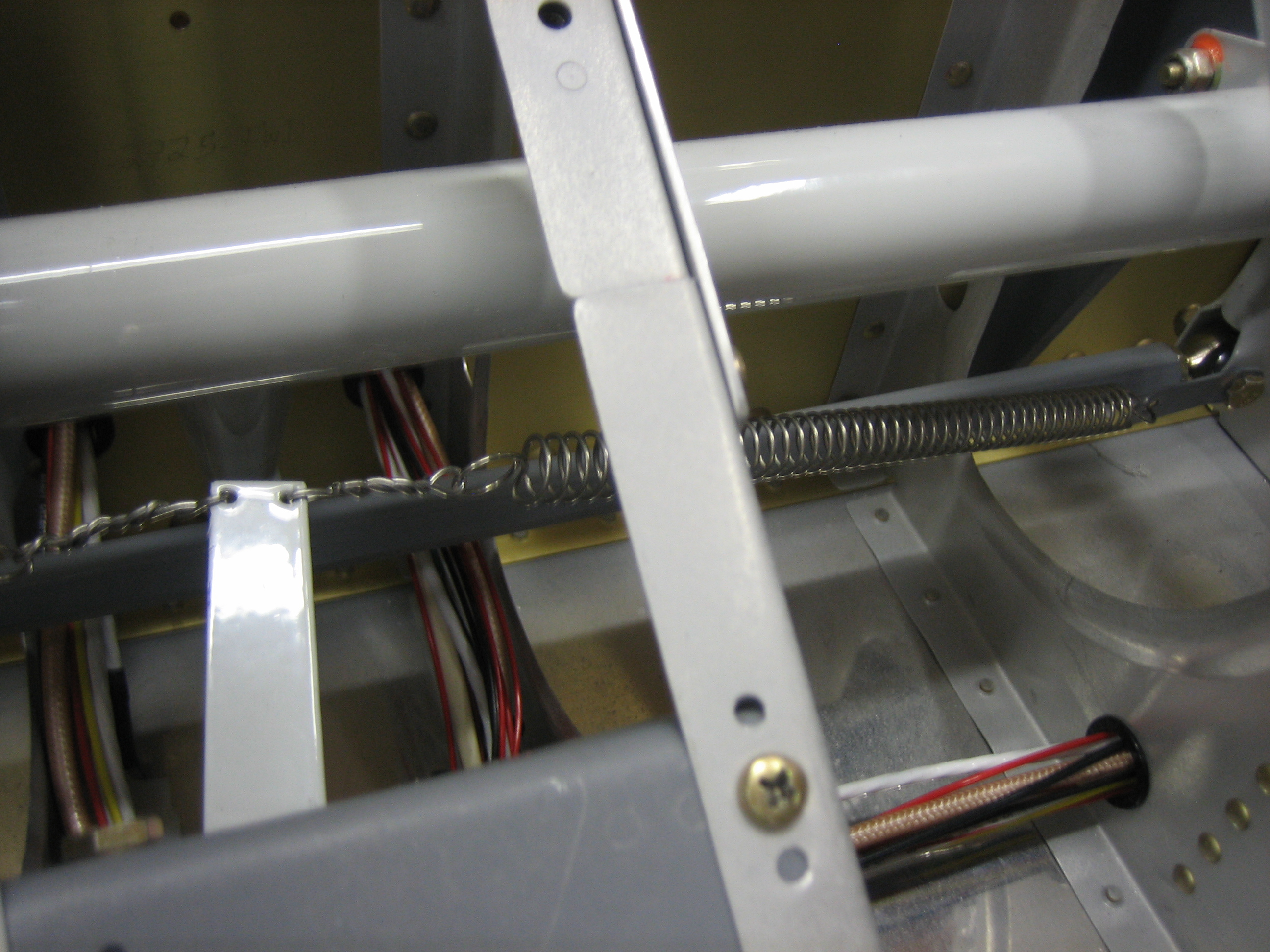

I finished the aileron trim by installing the right clip and attaching the spring between the clip and the servo arm with some 0.041″ safety wire.

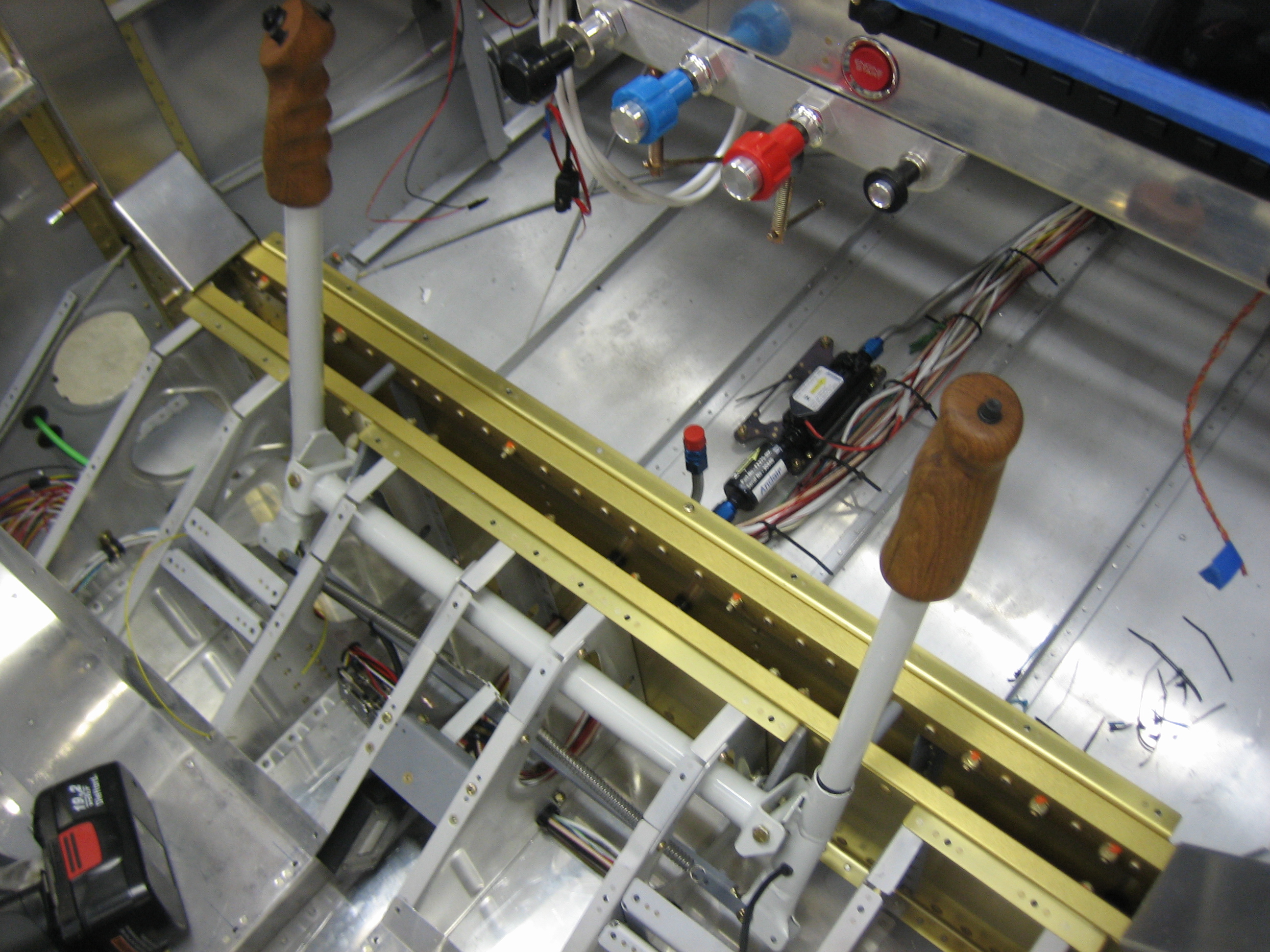

I adjusted the length of the safety wire so that the sticks naturally rest vertically when the servo arm is in the neutral position. I ran the trim to both ends and moved the sticks in all directions to ensure that nothing could snag or interfere with the sticks. I had to adjust the bend in the servo arm slightly to keep the safety wire from interfering with the rib just to the right of center.

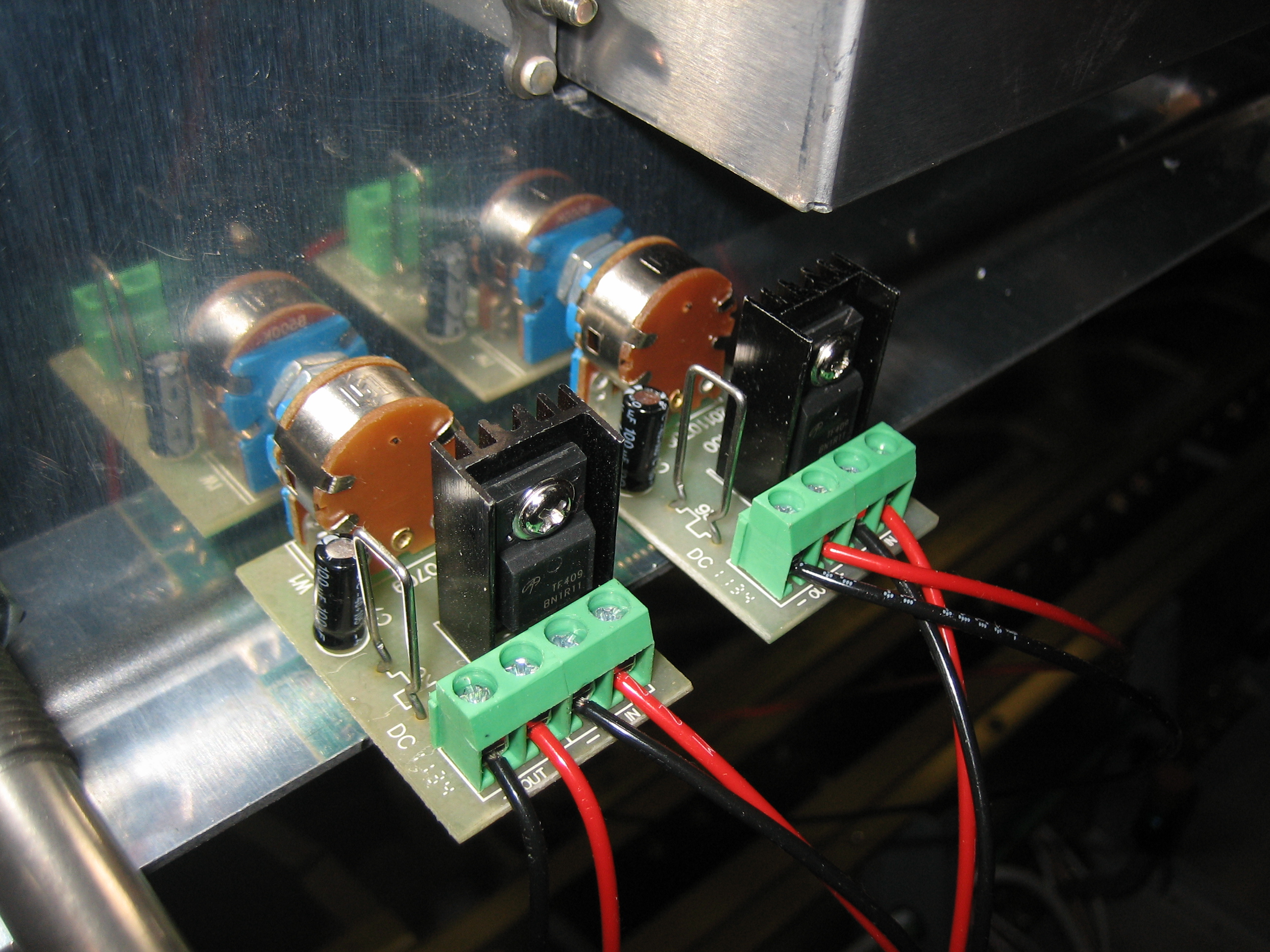

Next up, I installed the dimmers for the seat heaters. The control cable to the right is for the cabin heat, so all of the heat controls are located together.
I prepped the wires and attached them to the dimmers. It’s too late to run these wires tonight, so I’ll finish these off tomorrow.
