Prepped Rudder Cable Fairings for Riveting

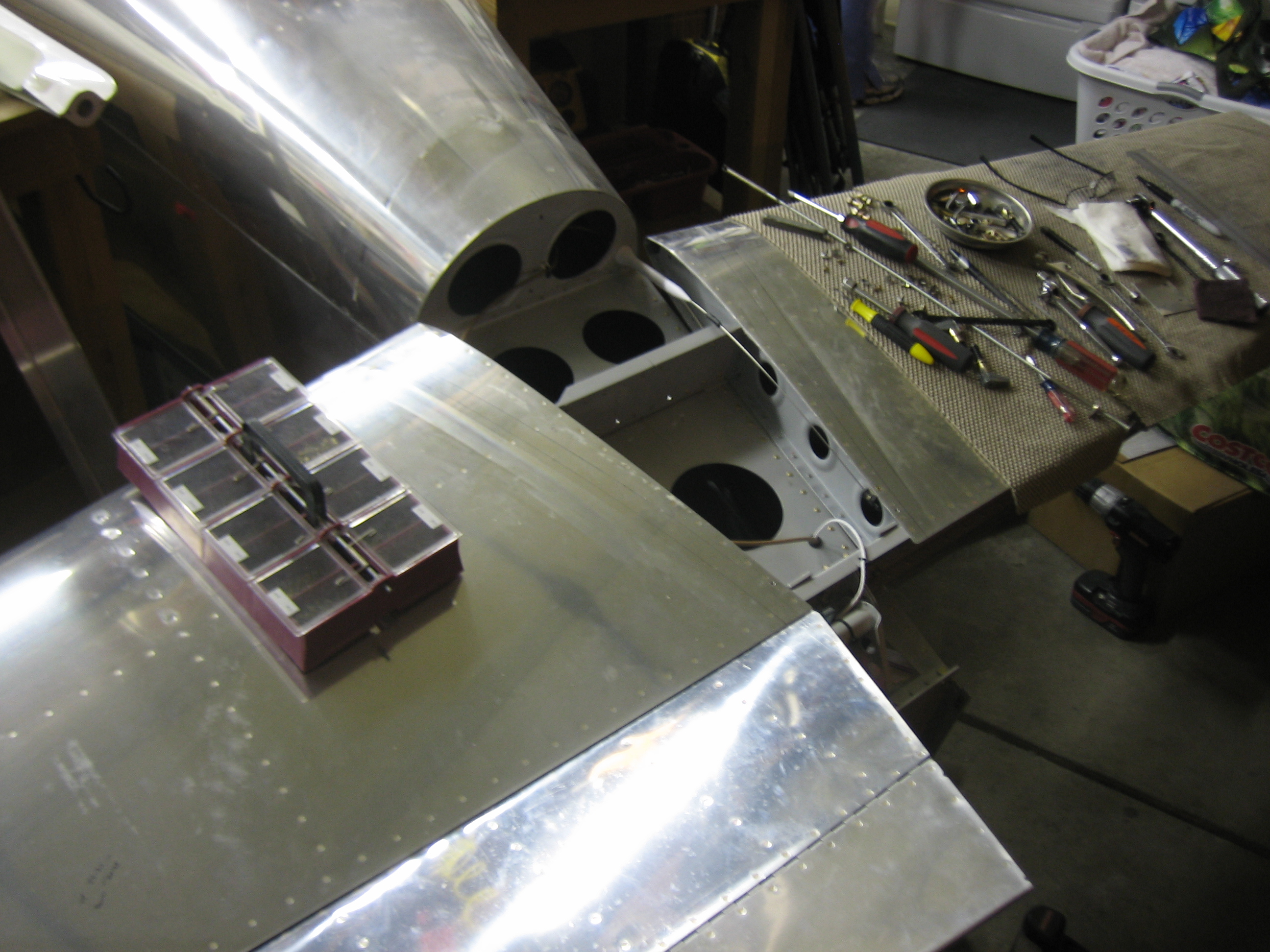

I removed the vertical stabilizer because I just couldn’t get my arms in comfortably to work on the rudder cable fairings.

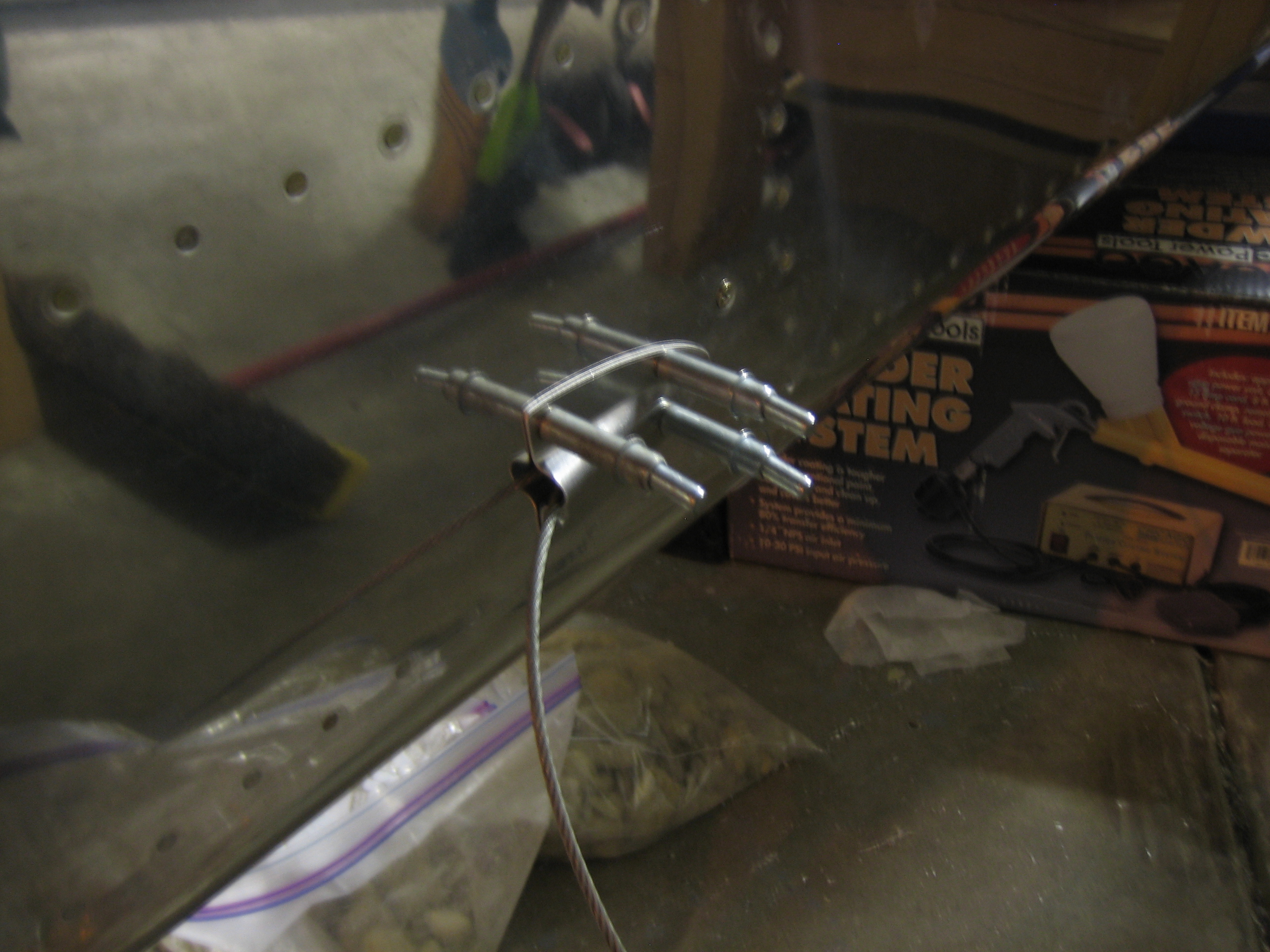

I used the pop-rivet dimple dies to dimply the fuselage and then clecoed the fairings on.  I’ve pulled the tubing out of the way, for now, to make it possible to buck the rivets.

I also countersunk these two holes that are normally used to hold on the external rudder stop.  It’s too late to rivet these on now, so I’ll do it tomorrow.
