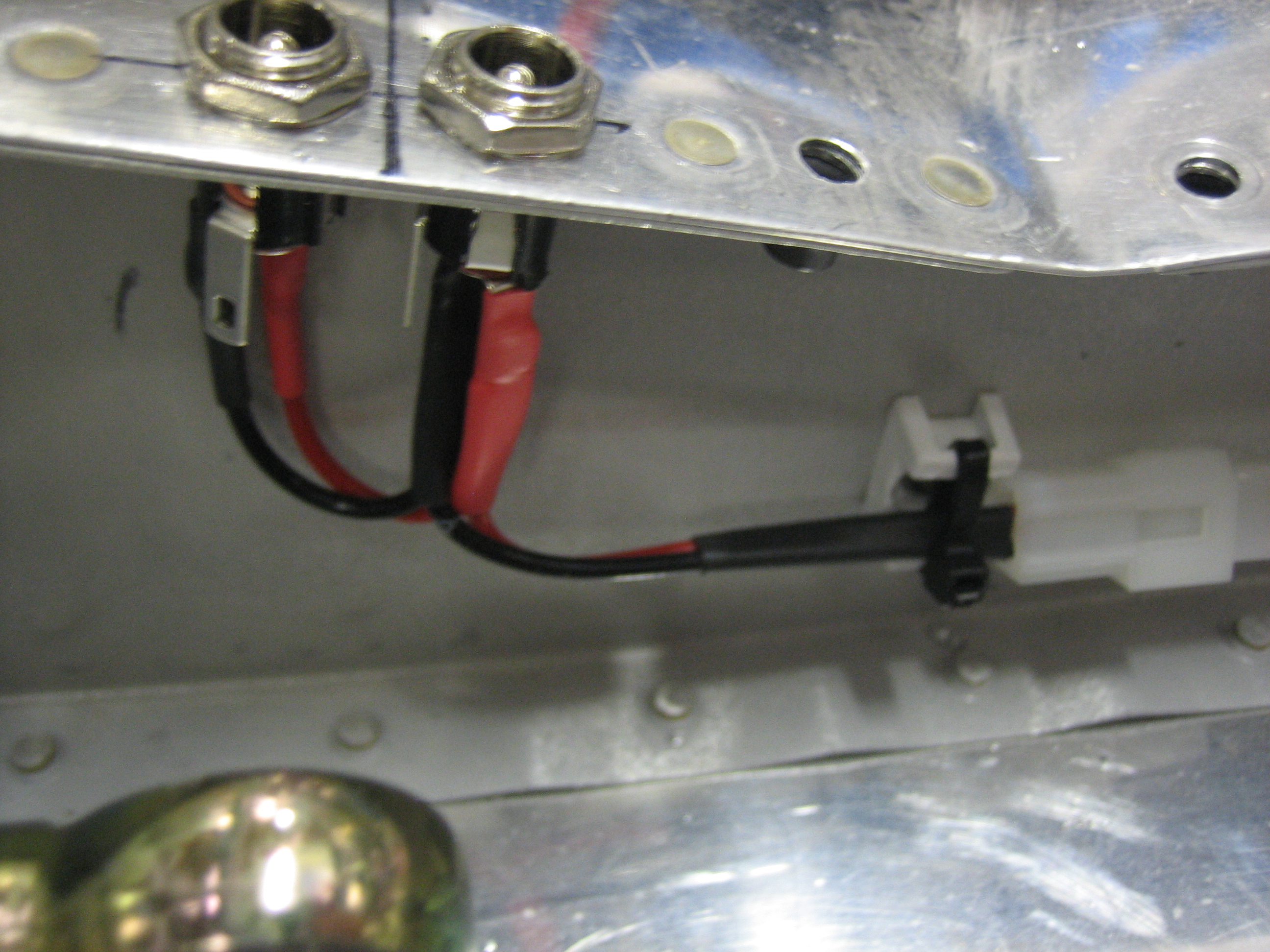

I finished running the wires for the left seat heaters. I had to pull the pushrod back so that I could install a few zip-tie bases to anchor the wires to the seat rib.

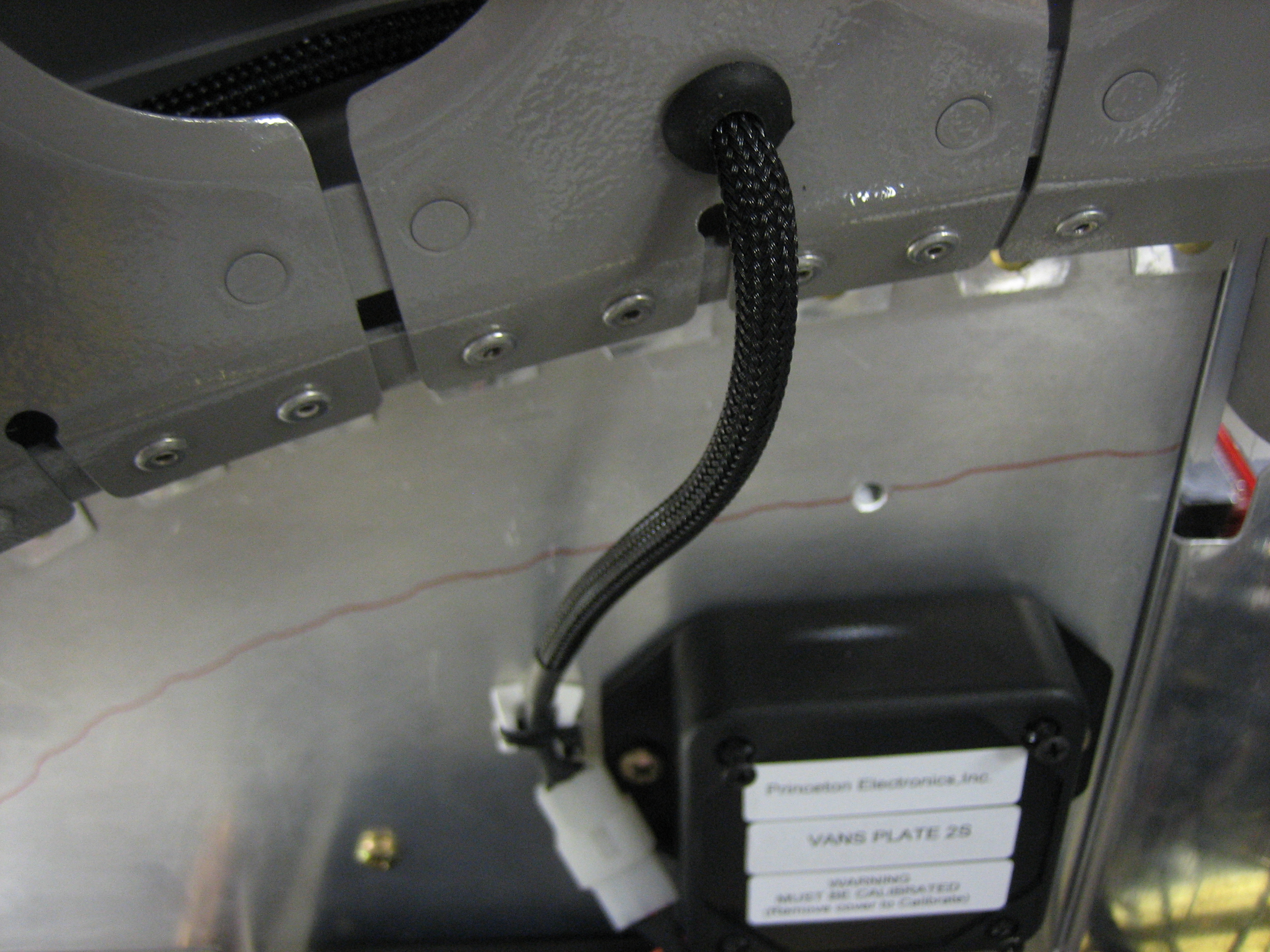

I drilled a hole for the glare shield wire bundle and installed a rubber grommet. I installed another zip-tie base to secure the wire next to the fuel sender and installed the rest of the wires to the dimmer and panel ground block.

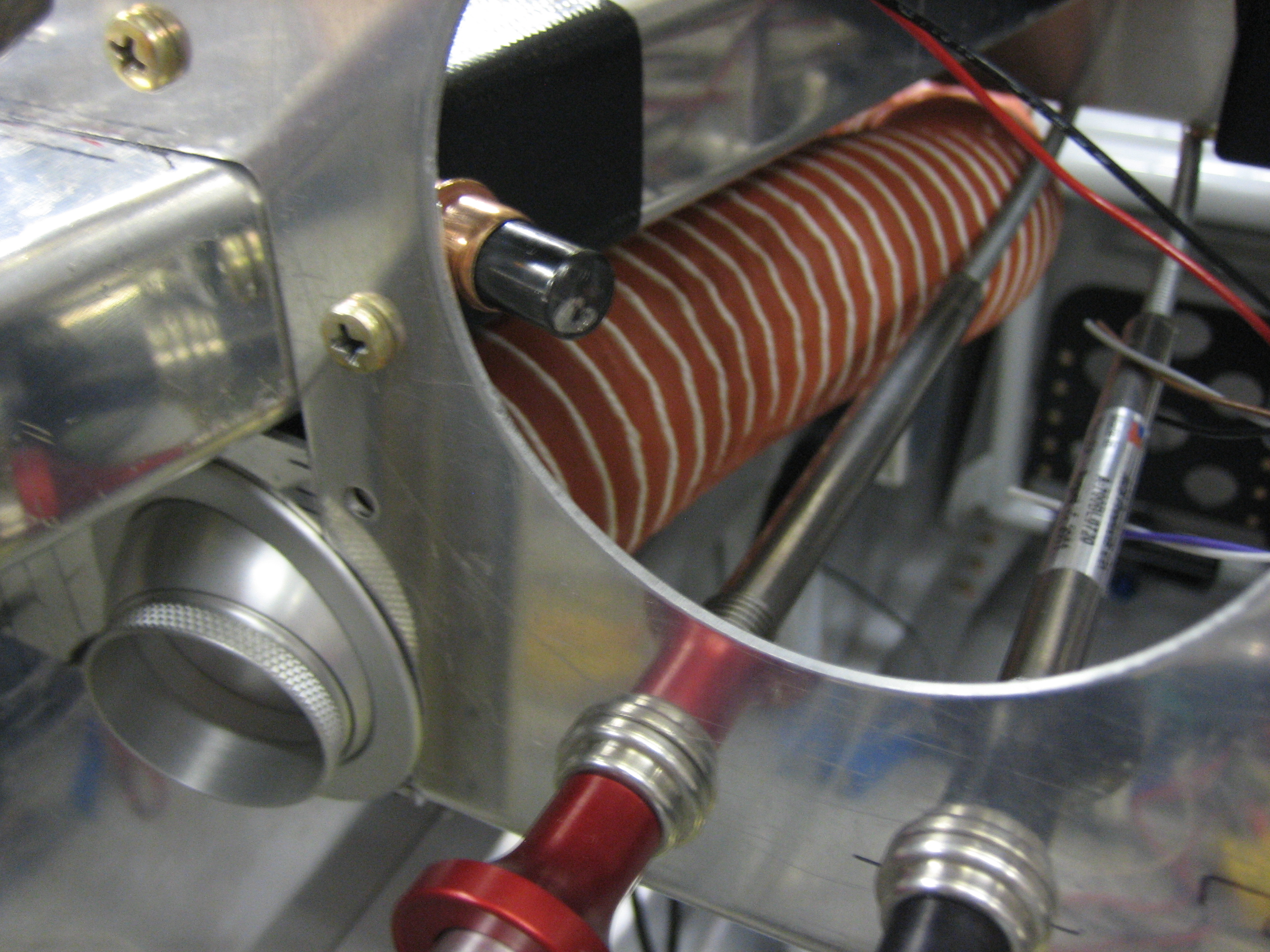

I meant to install the vent ducts earlier to ensure that nothing interferes. Unfortunately, I ran the pilot’s side headset wires right through the duct path. They’re not long enough to route over the duct, so I’ll have to route them under it. It’s not that big a deal, but you should install these as soon as the panel goes in to avoid running into any interference later. Most things have some flexibility about how they’re routed, but these can pretty much only run here.
