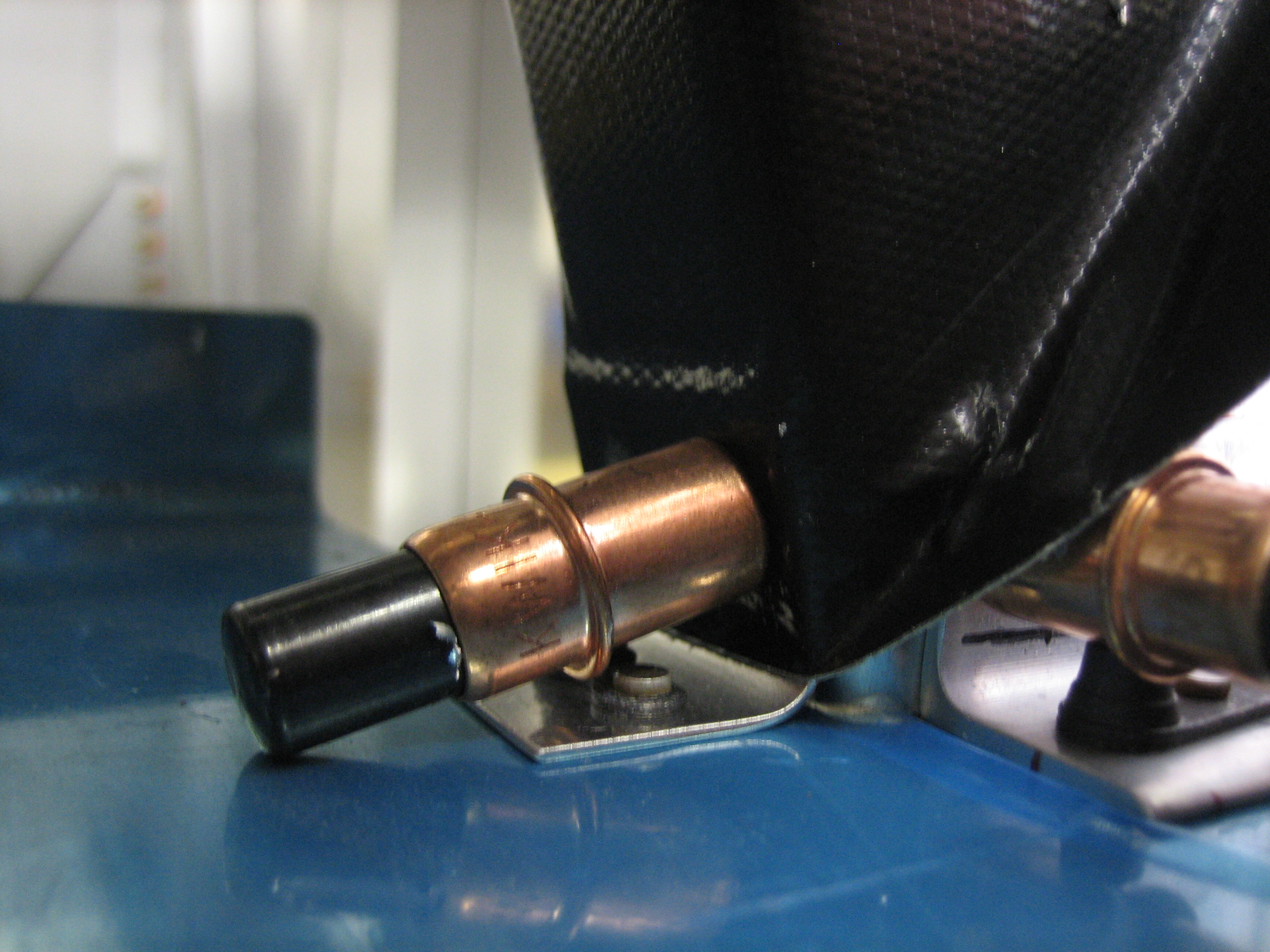

I fabricated the additional clips that attach the instrument panel to the forward canopy supports.

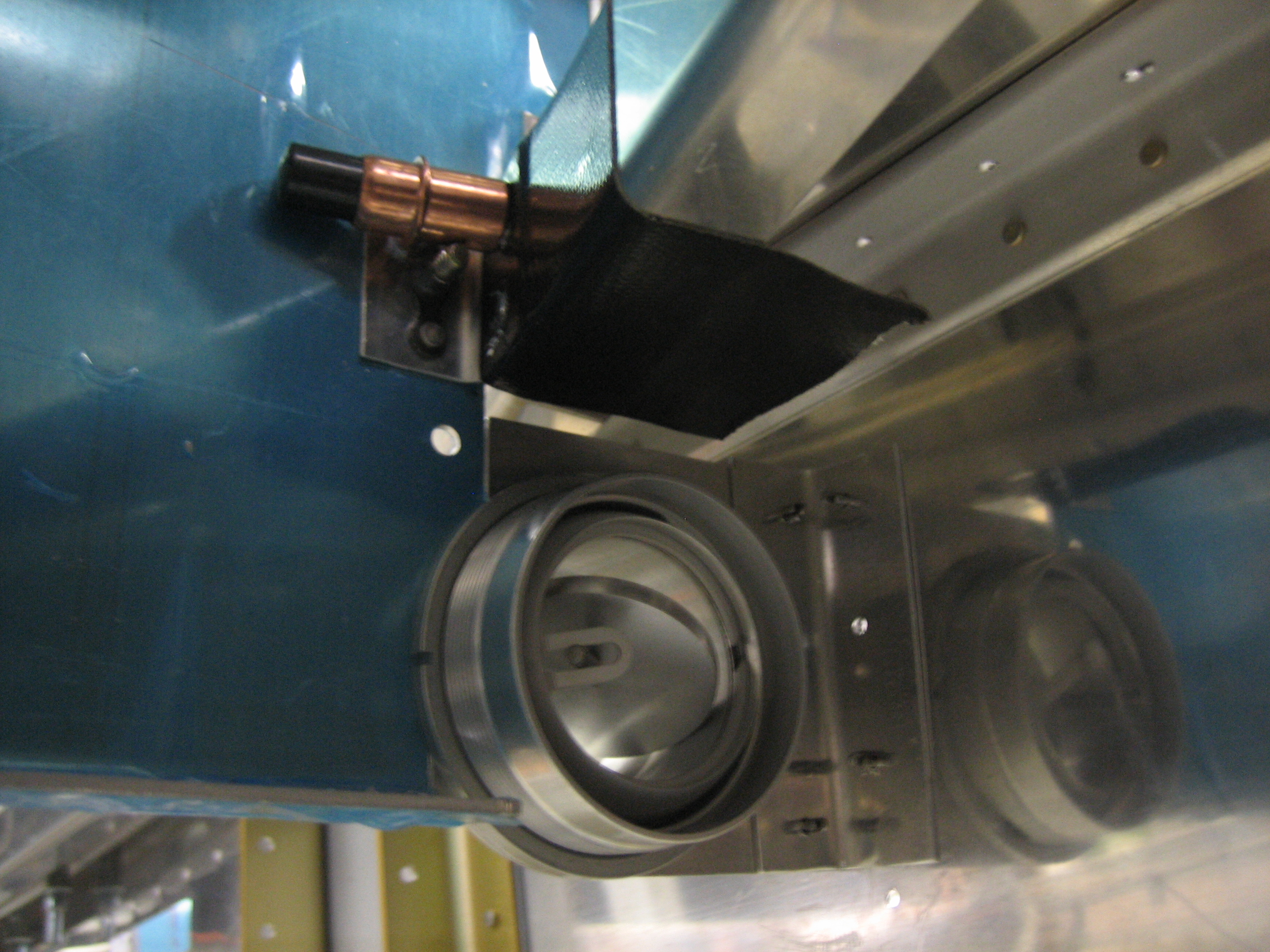

Here’s another shot from behind the instrument panel showing where these clips attach. You can also see that I’ve finished the left air vent support bracket and drilled it to the side skin.

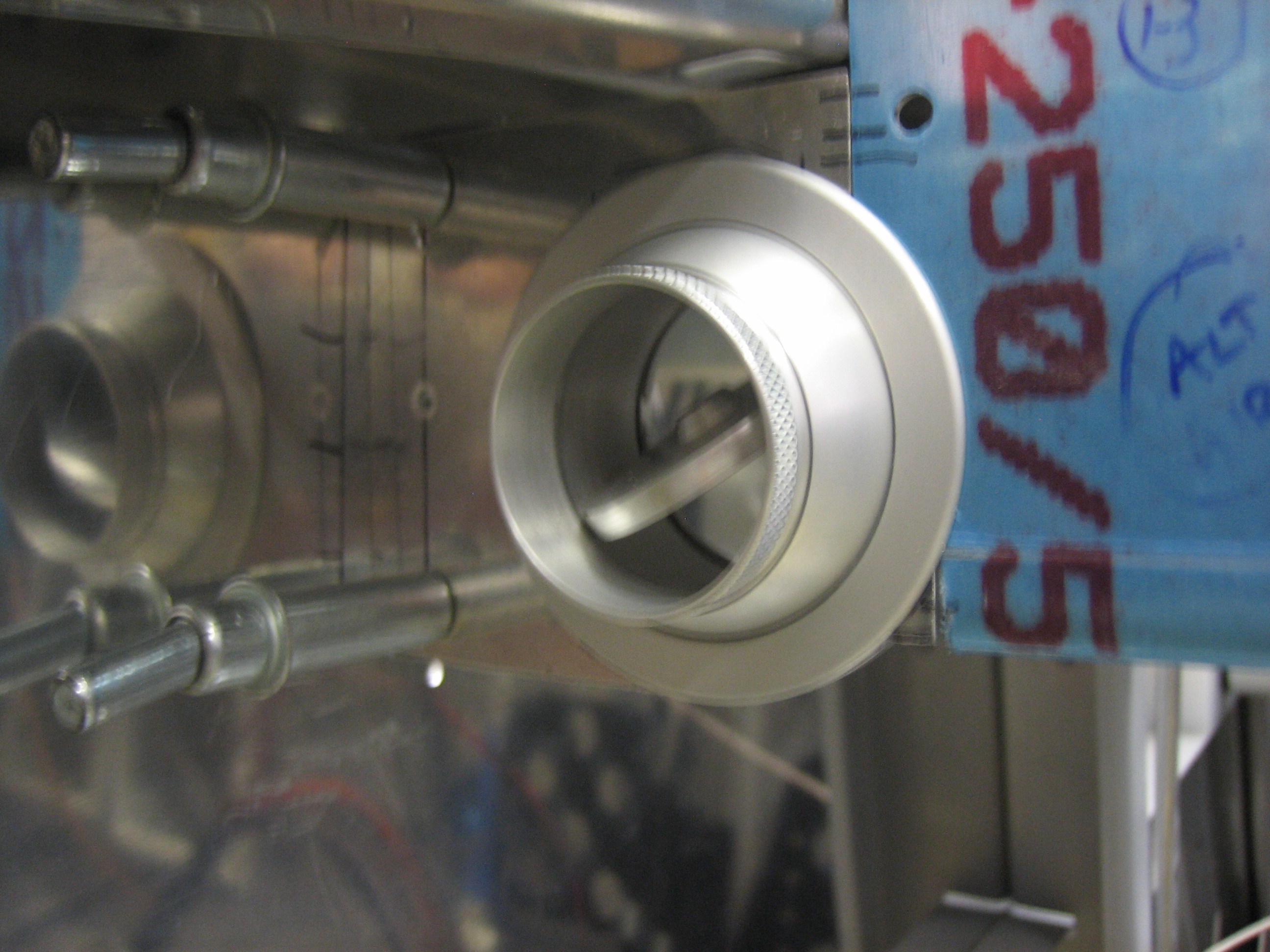

Here’s the front side.

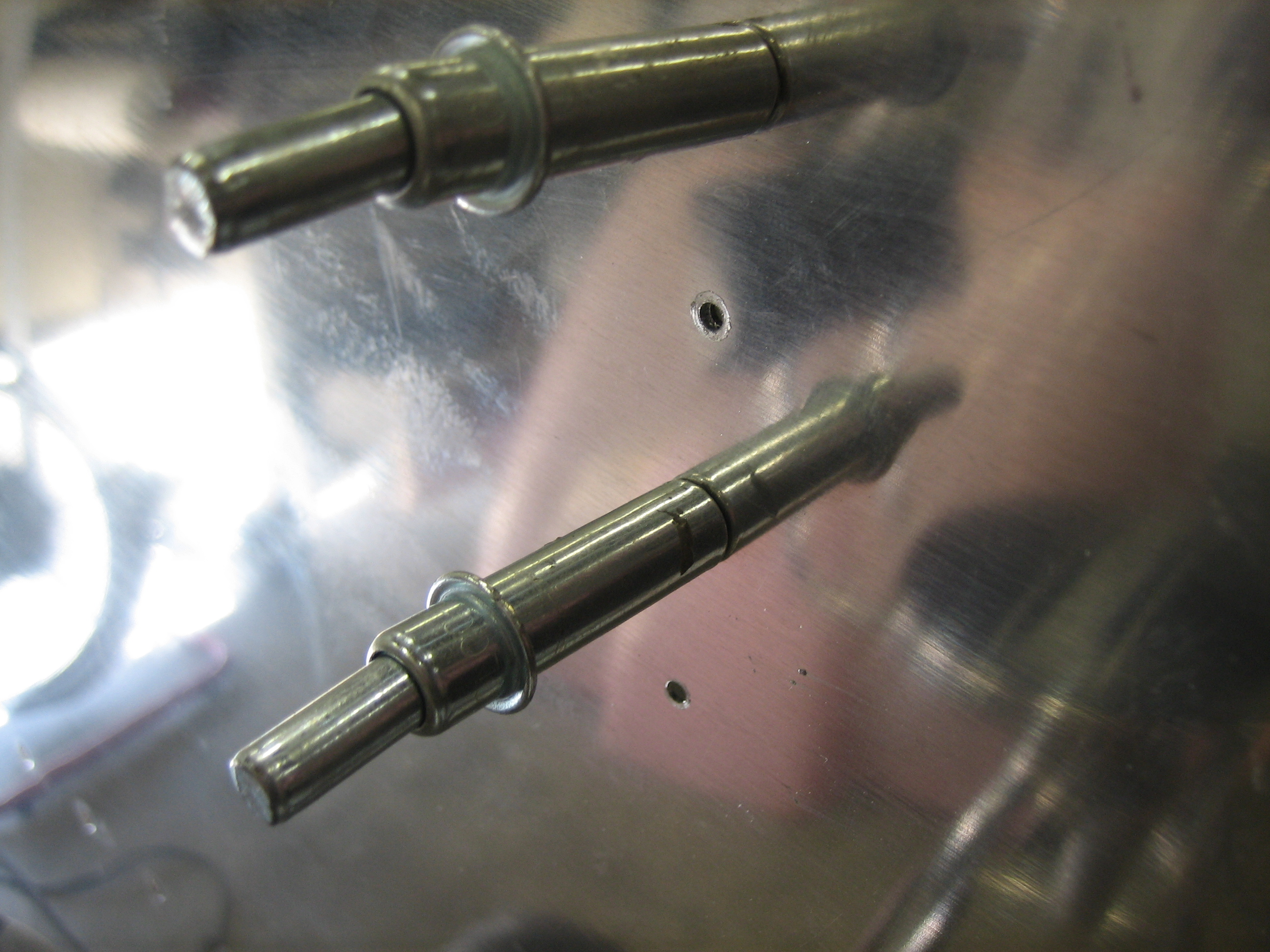

I only used the top three holes to attach the bracket since these vents are smaller than the Van’s stock plastic vents. I’ll fill the bottom holes with an extra rivet.

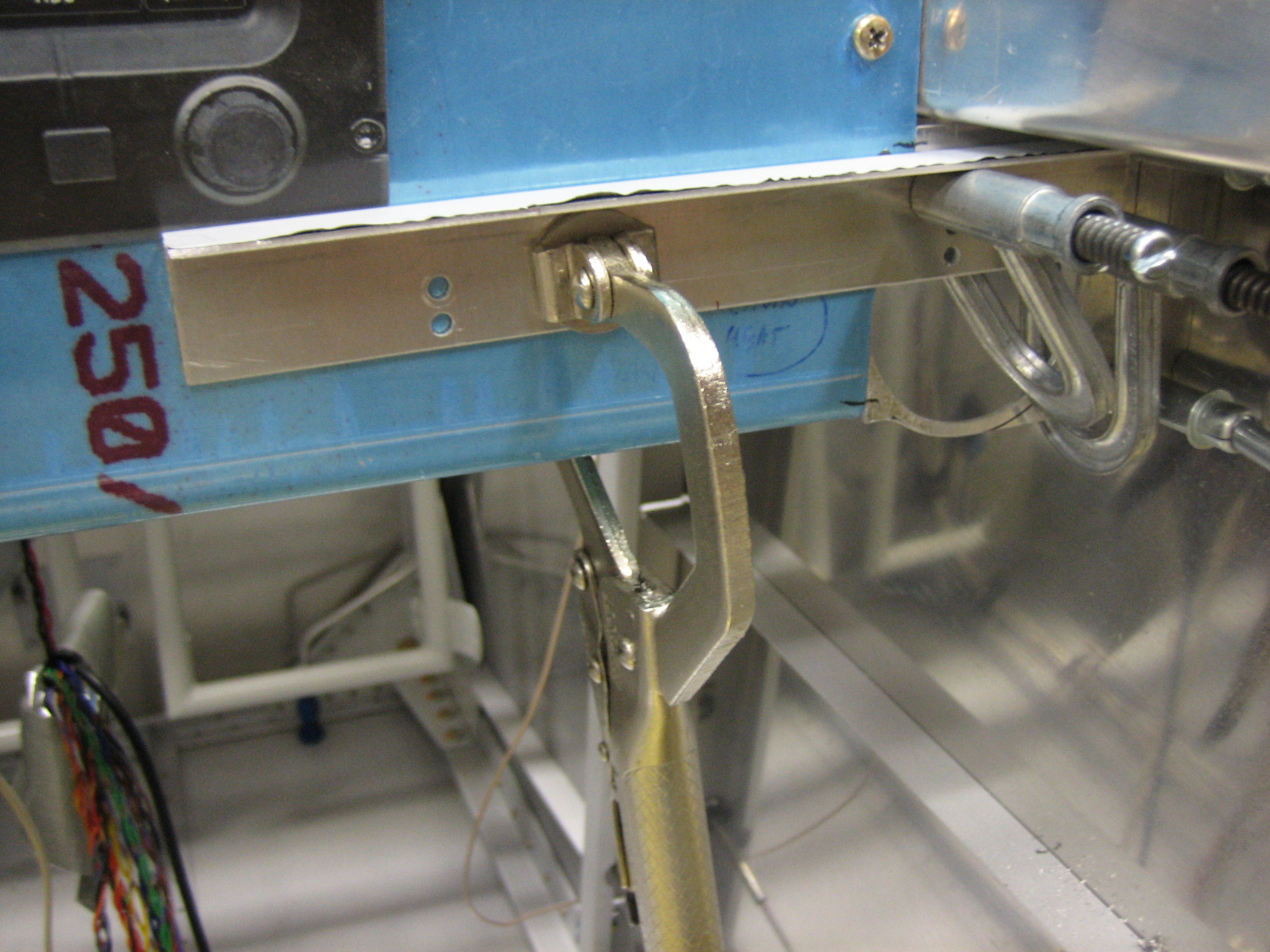

Here you can see how I ensured the air vent brackets were coplanar before drilling the brackets to the side skins.
