Installed Seat Belt Cables

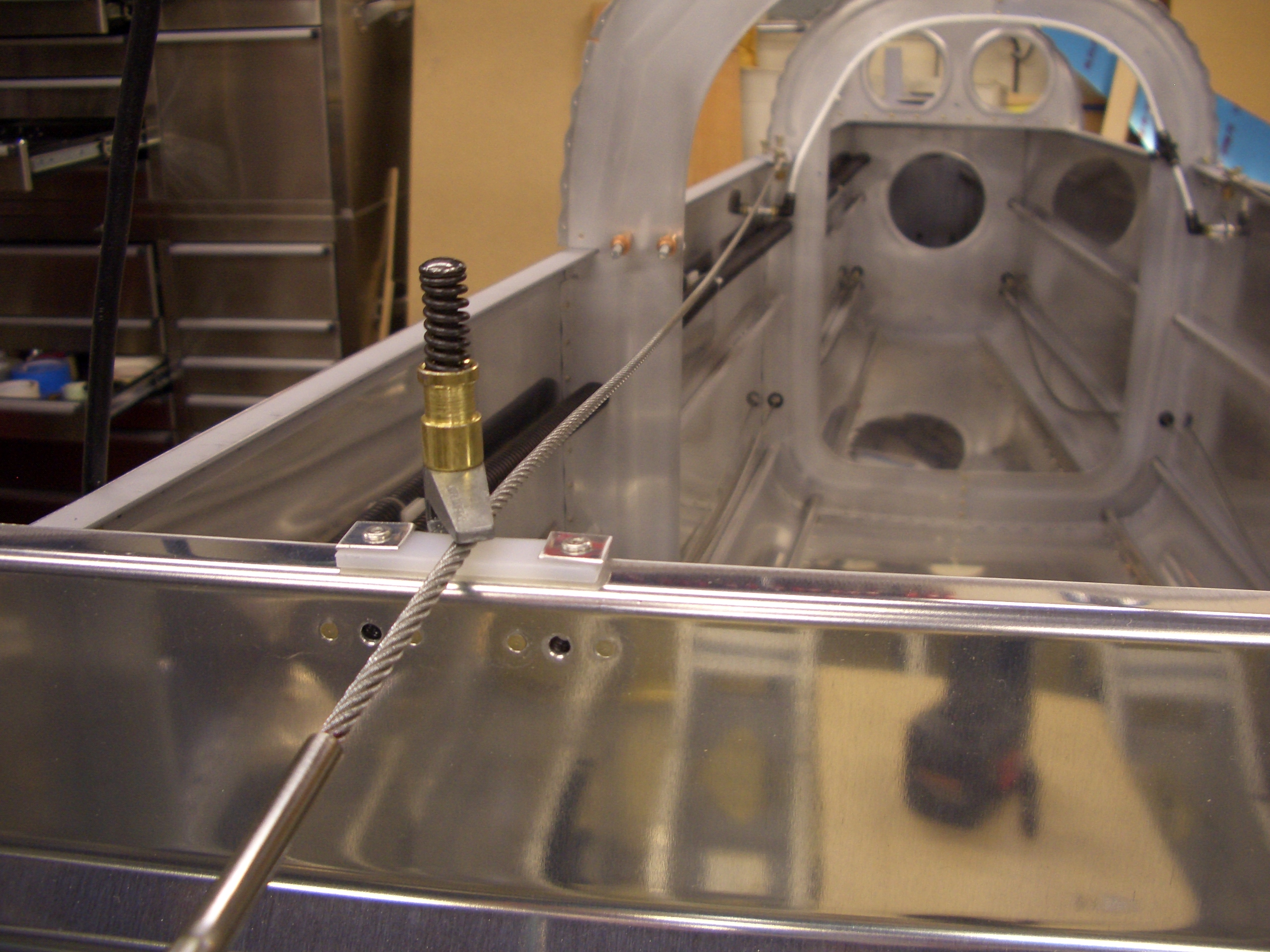

I decided to go ahead and install the seat belt cables and partially bolt the bracket in place.  The middle of the three AN3 bolts has been torqued and sealed.  The other two would interfere with side rivets, so they’ll be installed after the top is riveted on.  I also put the AN4 bolt that attaches the cable and torqued/sealed it.

I did this now, because it was trivial to ensure that the cable was aligned with the baggage wall pass through. If I waited to do this after installing the top skin, I’d be climbing back in the tail to tweak the alignment.
